Rail fastening systems are used to secure rails to railway sleepers.

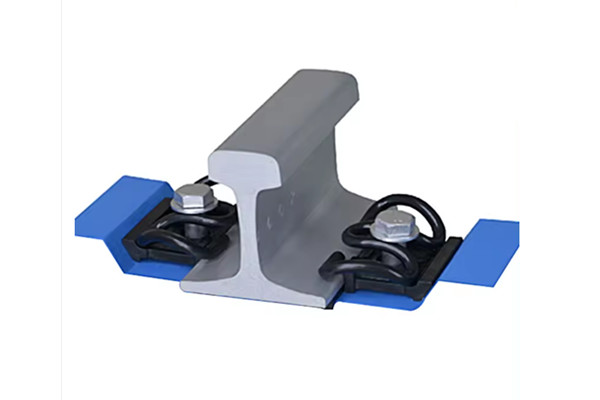

As a professional railway fastener manufacturer, Kingrail Parts can provide 336 rail fastening systems.
Our 336 rail fastening system includes: SKL Clips, Screw Spike, Angle Plate, Plastic Dowel, Rail Pad.
Specification:
| Item No. | Components Name | Description | Standard |
| 1 | Anchor bolt M27 with hexagon nut M27 | Bolt: G8.8; Nut: G8 | DIN ISO 898 T1,DIN ISO898-1 |
| 2 | Intermediate pad Zwp 392/160/5 | Material: EVA | DIN 53479;DIN IEC60093 |
| 3 | Elastic pad Zwp 186 | Material:PU,Rubber,EPDM according to requirements | DIN IEC60093 |
| 4 | Ribbed plate Rph49 | Cast iron | DIN EN1563 |
| 5 | Insulating bush Fbu6 | PA6+30%GF | DIN 53479;DIN IEC60093 |
| 6 | Helical spring Fe28 | DIN EN10270 | |
| 7 | Collared Washer Uls10 | PA6+30%GF | DIN 53479;DIN IEC60093 |
| 8 | Rail pad Zw687 | EVA | DIN 53505; DIN ISO 1133; DIN 53479;DIN IEC60093 |
| 9 | T-head bolt Hs32 with hexagon nut | bolt:G5.6; nut:G5 | DIN EN ISO 898 |
| 10 | Tension clamp SKL12 | 60Si2MnA;38Si7 | DIN EN 10089;DIN EN ISO6507 |
| 11 | Washer Uls6 | Surface finishing:HDG | DIN EN 10025; DIN EN 10139 |
