Rail Rubber Pads

Product Description

What is rail rubber pad

Rail rubber pad (also called rail pad) is made of elastic polyurethane pad and is installed between steel rail and concrete sleeper. It is an important part of the supporting structure of heavy crane rail tracks and railway tracks.

The function of railway rubber pads is to protect the sleepers from impact and extrusion. At the same time, railway rubber pads can electrically isolate the signal system. As railway rubber mats are always exposed to the atmosphere, they are required to have good resistance to natural aging, cold resistance, and heat resistance. In addition, railway rubber pads should have good shock absorption and low noise performance.

List of Rail Rubber Pads.Please click to get detailed product information.

Ps:Accept customized. Rail Rubber Pads pecifications could be customized as clients' requests.

Detailed Product Information

Function of Rail Rubber Pad

1. Load distribution on a larger surface
2. Eliminate load concentration and the resulting fatigue stress
3. Focus the load on the support element
4. Absorb uneven contact surface between rail and bracket
5. Reduce noise and vibration
6. The seal between the bottom of the rail and the top of the bracket
7. Reduce the wear of steel rail and its support

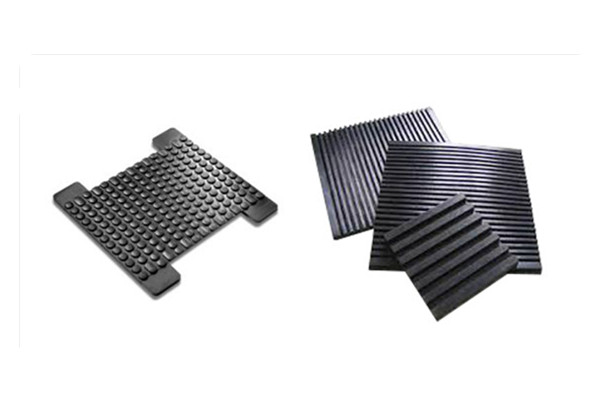

Types of rail rubber pads

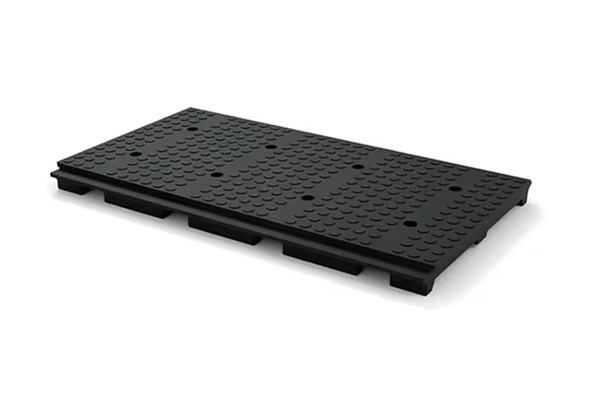

1. Rail pads for E-type rail fastener system
The rail rubber pad used in the E-rail fastening system has a similar function to the rail insulator, which can isolate the rail above it from the sleeper below it, effectively preventing vibration and structural noise. The rail pad, e clips, rail insulator and rail shoulder form a complete set of E-type rail fastening system.

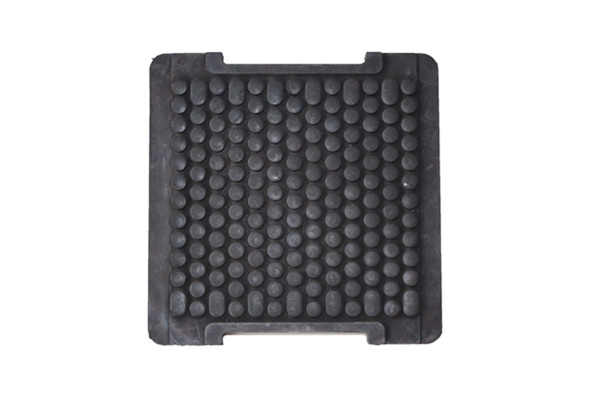

2. Rail pad for SKL rail fastening system
The rail pad in the SKL rail fastening system is a small but important fastener component that works with SKL clips, screw spikes, plastic dowels, rail tie plates, etc. Rail rubber pads have a certain rigidity and significantly increase the elasticity of the rail superstructure. It has higher elasticity and helps rolling stock to run quietly to meet the acoustic requirements of today's railway lines.

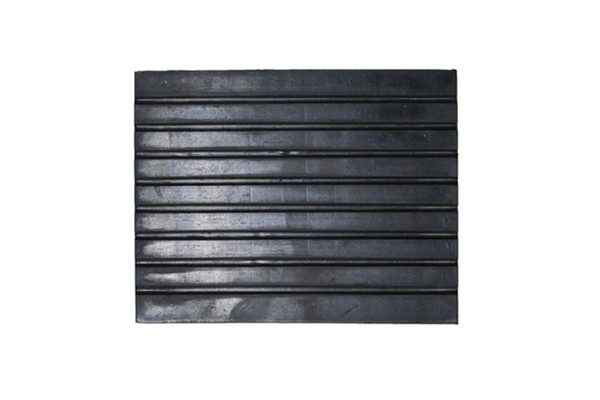

3. Rubber pads for concrete sleepers
Material: rubber
Standard: TB/T2626-95
Application: 43kg/m, 50kg/m, 60kg/m, 75kg/m rail
Models: 43-7-7, 43-10-7, 50-7-9, 50-10-9, 60-10-17, 60-12-17
Operating temperature: -50~70 degrees
Certificate: ISO9001:2008

Note: Rail pads should be stored in a clean and ventilated place. Don't put it under direct sunlight, keep away from heat and chemical reagents. Do not touch oil, organic solvents and other chemicals.

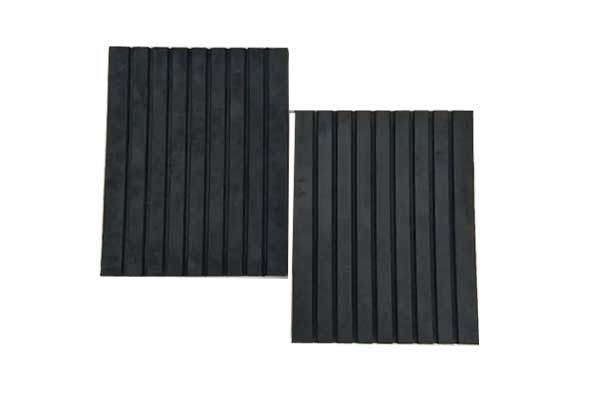

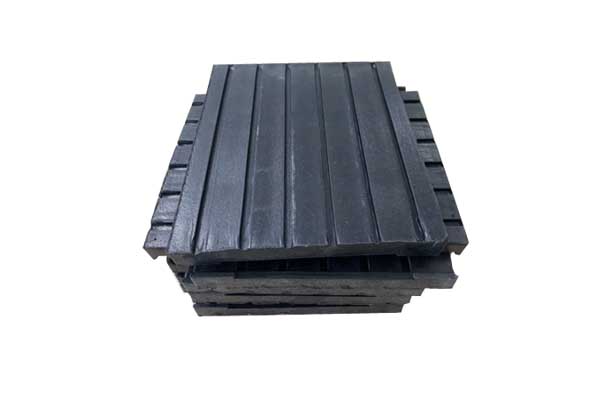

4. High elastic groove EVA/HDPE/rubber rail pad

Our EVA/HDPE/rubber rail pads have high elasticity, suitable for UIC54, UIC60, BS80lbs, BS100lbs and other track types and order sizes. According to the customer's requirements, the pads with or without grooves can be customized, and various possible designs are adopted.

Mechanical properties of different materials of rail rubber pads

1. Mechanical properties of HDPE Rail Pad:

Technical Parameter	Unit	Technical Requirement	Value
Density	g/cm3	0.95-0.98	0.95
Tensile Strength	Mpa	≥19	19
Elongation	%	>80	150
Melting Point	℃	170-190	190
Insulation Resistance	Ω	≥1×1010	3.5 ×1010
Hardness	A	≥98	98(A)

2. Mechanical properties of EVA Rail Pad

Technical Parameter	Unit	Technical Requirement	Value
Density	g/cm3	0.95-0.98	0.95
Tensile Strength	Mpa	≥15	16
Elongation	%	>500	550
Melting Point	℃	170-190	170
Insulation Resistance	Ω	≥1×1010	5.0 ×1010
Hardness	A	≥90	92(A)

3. Mechanical properties of the Rubber Rail Pad

Technical Parameter	Unit	Value
Stiffness	KN	90-130
Hardness Shore A	℃	72-80 degree
Electronic Resistance	Ω	≥ 106
Tensile Strength before Aging	Mpa	≥12.5
Elongation before Aging	%	≥250

Production Process

Production process of rail rubber pad

1. Storage of rubber compounds
2. Rubber masterbatch grinding and mixing
3. Semi-finished product molding and curing
4. Compression or injection molding
5. Finished product finishing and inspection
6. Inventory and storage

Company Introduction

Rail Rubber Pads Manufacturer

As a professional manufacturer of rail rubber pad in China. We generally produce railway rubber pads according to the drawings and requirements provided by customers.
