Rail tie plate, also known as rail baseplate or rail sole plate, is a steel plate used to connect railway track and sleeper. It is an important part of crane track or railway track support system.
Rail tie plate, also known as rail baseplate or rail sole plate, is a steel plate used to connect railway track and sleeper. It is an important part of crane track or railway track support system.
With the development of heavy-haul railway transportation, axle load is increasing day by day. There are also new and higher requirements for steel rails and rail tie plates that play a load-bearing role in the overall railway system. Current heavy-duty railway transportation requires rail tie plates to have better damping performance, impact resistance, support performance, and longer service life.
According to the load and track standards of wooden, steel or concrete sleepers, Kingrail produces rail tie plates that can adapt to various track sections: UIC54 rail, UIC60rail, 50kg rail, 60kg rail, S49 and other sizes
Type |
Rail |
Holes |
Incline |
Weight(Kg) |
Dimension |
Rph 1/160 |
S49 / S54 |
Ø 26 (4x) |
1:40 |
7,86 |
345/285/127/160x15/13 |
Rp 01/01/160 |
S49 / S54 |
Ø 26 (4x) |
1:40 |
7,70 |
345/285/127/160x15/13 |
Rph 1/210 |
S49 / S54 |
Ø 26 (4x) |
1:40 |
10,55 |
345/285/127x210x15/13 |
Rph 1/210 |
S49 / S54 |
Ø 36,3 (2x) |
1:40 |
10,55 |
345/285/127x210x15/13 |
Rph 1/210 FVZ |
S49 / S54 |
Ø 26 (4x) |
1:40 |
10,69 |
345/285/127x210x15/13 |
Sph 1(a) |
UIC60 |
Ø 26 (8x) |
1:40 |
20,60 |
345/350/127x410x15/13 |
Rph 6/160 |
UIC60 |
Ø 26 (4x) |
1:40 |
8,44 |
370/310/152x160x15/13 |
Rph 6/210 |
UIC60 |
Ø 26 (4x) |
1:40 |
11,32 |
370/310/152x210x15/13 |
SZ 60 |
UIC60 |
Ø 26 (8x) |
1:40 |
22,73 |
370/350/152x420x15/13 |
Rph 11 Ü |
S54 |
Ø 26 (4x) |
1:40 |
15,37 |
664/554x160 |
Rph 13 Ü |
UIC60 |
Ø 26 (4x) |
1:40 |
15,27 |
690/570x160 |
Rpo 5 |
S49 / S54 |
Ø 26 (4x) |
1:20 |
8 |
345/285/127x160x15/13 |

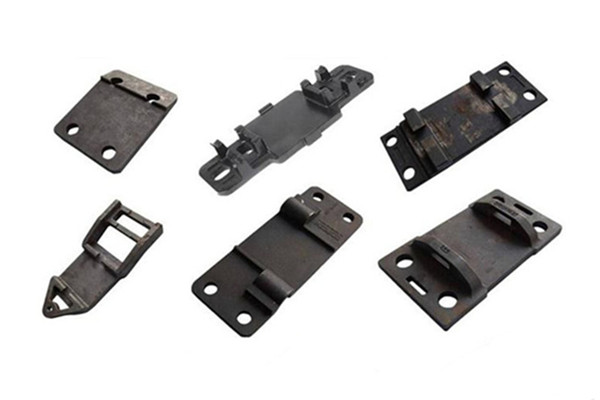

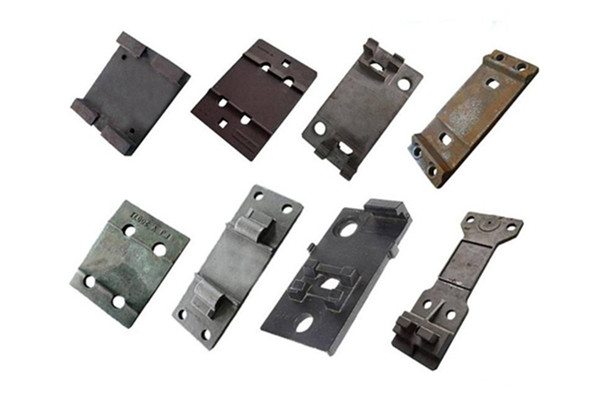

Rail tie plate is usually divided into: 1.Single Shoulder tie plates 2.Double Shoulder tie plates 3.Hook Twin Tie Plates 4. Direct Fixation Tie Plates
According to the different rail plates used, it can also be divided into 6 categories
Type | apply |
Single shoulder tie plates |
rails weights running from 56lb though 100 lb |
Double shoulder tie plates |
rail weights larger than 100 lb |
Casting rail baseplates |
UIC54 rail, UIC60 rail , 50kg rail, 60kg rail,S49 rail and size as ordered |
rail sole plates for KPO fastening systems |
KPO fastening system |
AREMA standard rail tie plate |
for American rails |
AREMA twin hook rail tie plate |
for railway turnouts |
Other types of rail base plate |
|
Rail tie plate is used to provide smooth and uniform supporting surface for railway track and connecting belt. Due to its own steel material, it can well support the upper rail track, thereby effectively preventing the track from cutting into the connecting belt and maintaining the track gauge.
The rail soleplate is often fixed on the sleeper together with rail anchor bolts or rail spikes. In this way, the steel rails, the railway fixing system and the sleepers are closely connected together. When a train passes by, the load of the train wheels can be evenly distributed to the connecting belt, and then transmitted to the sleepers and the entire sleeper bed of the railway, thereby reducing the impact of the train on the rail when the train passes, and has the effect of damping.
The production process of rail tie plate is generally divided into three categories: forging, rolling and casting.
Casting is the most commonly used production process. Kirail's casting technology is mature, good quality, and low unit price is the choice of most customers.
Casting is mainly used for rail tie plates in the United States, Canada and other European and American countries. Since casting requires higher craftsmanship, most railway fastener manufacturers in China cannot do it. However, Kirail's casting technology capabilities are very strong. We have a stable supplier of casting raw materials. There are more than 10 engineers and technicians who can accurately design the casting rail tie plate mold, and improve the processing size of the casting rail tie plate through hot pre-coating or machining.
Rail tie plate production process: raw material-forging or casting (1100 degrees Celsius)-forming-hardening-tempering below 350 degrees Celsius-oiling-inspection-packaging
1. Kirail has ISO9001-2000 production quality certificate.
2. We use Q235,QT500-7 (Casting iron),QT450-10 (Casting iron), 20#, 35# and other high-quality raw materials to produce rail baseplate
3. Kirail's rail tie plate molds conform to the use standards of various countries, such as AREMA ,GB,JIS E1110, and UIC864-6.
4. The surface of the rail tie plate produced by Kingrail has been treated with anti-oxidation and processed with corrosion-resistant materials, which can effectively increase the service life of the rail sole plate.
5. We can produce rail baseplates with various hole shapes, including: 2 holes, 4 holes, 5 holes, 6 holes and 8 holes
6. The rail tie plate produced by King's ductile iron technology has stronger vibration resistance and impact resistance
7. We can provide customized rail sole plates according to customers' drawings and samples. Meet the various technical requirements of customers.
