Product Description

What is rail anchor

The rail anchor or rail anti-climbing device is a spring steel clip, which is connected to the underside of the sleeper plate and rests on the side of the sleeper. The function of the rail anchor is to prevent longitudinal movement of the rail due to temperature changes or vibration.

The rail anchor is directly installed on the rail baseplate and leans on the rail tie rod. The rail anchor provides a large bearing surface for the rail base and sleepers, prevents cutting and abrasion, and ultimately extends the service life of the sleepers. Anchors are manufactured for specific rail weight and base width, and can be divided into two types: driven on rail anchors and spring-loaded rail anchors.

List of Rail Anchor.Please click to get detailed product information.

Ps:Accept customized. Rail Anchor pecifications could be customized as clients' requests.

Detailed Product Information

Application rules of rail anchor

How to install rail anchor correctly? Regarding the application of rail anchor, generally follow the following rules:
1. The rail anchor should be located on the rail gauge side of the railway base and opposite to the same rail gauge tie rod face on the opposite rail track.
2. The railorad anchor must firmly fix the track base and fully support the rail track contact surface.
3. When the rail anchor's support to the rail gauge tie rod is disturbed, a new rail anchor and a rail tie plates will be required.
4. The railroad anchor should not be moved by driving along the rail track.
5. When applying irion railroad anchor, keep the rail track straight.

Types of rail anchors

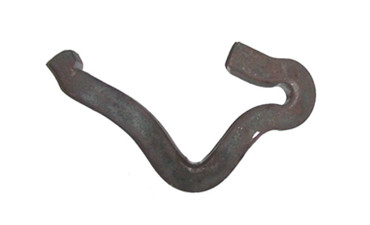

We can produce T-shaped or V-shaped rail anchors and other types through forging or casting according to customer requirements.


1. Rail anchor bolts are usually used for 50kg, 85kg, UIC54, UIC60, 90/91lb, 115RE, 136RE and other rails.

Type
 Used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail, or other types upon customers’ drawings.
Material 60Si2MnA 45# QT500-7
Chemical composition(%)

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03
 C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025


2. The most commonly used material for rail anchors is 60Si2MnA, which is commonly used for rails such as 50kg, 70lb, 80lb, and 90/91lb.
Type Material Weight(g/pc)
50Kg 60Si2MnA 800
70LB 60Si2MnA 800
85LB 60Si2MnA 800
90/91LB 60Si2MnA 800


3. Rail anchors for the Russian market
Russian railway anchors are often used in railway casting, and their material is QT400-15. All related mechanical properties are strictly implemented in accordance with TOCT 7293-85 standard.

Production Process

Production process of rail anchor

The rail anchor is usually a one-piece metal made of spring steel by rolling, forging or casting after heat treatment. Railroad anchors with complicated bending are usually produced by casting.

Company Introduction

Rail Anchor Manufacturer

As a professional rail anchor manufacturer in China, we can produce rail anchors according to the drawings and technical requirements or the sample you sended to us.
