Product Description

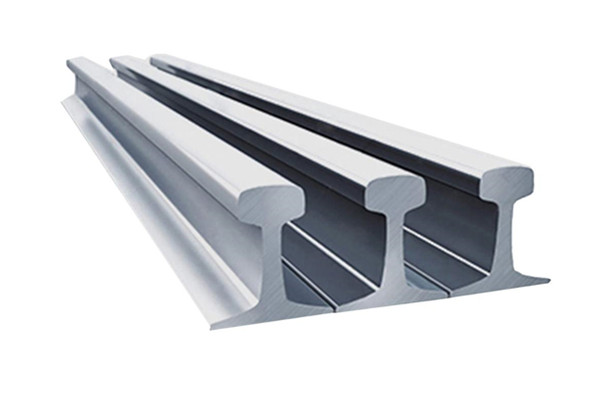

What is Steel Rails

Steel rail is the main component of railway track. Its function is to guide the wheels of rolling stock to move forward, bear the huge pressure of the wheels, and transmit it to the sleepers. The rail must provide a continuous, smooth and least resistance rolling surface for the wheels.

List of Steel Rail.Please click to get detailed product information.

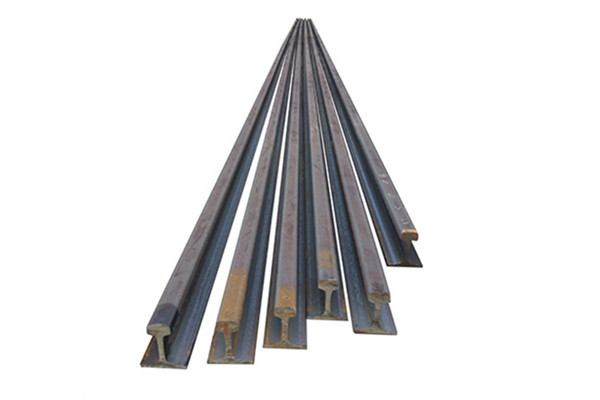

Steel Rail

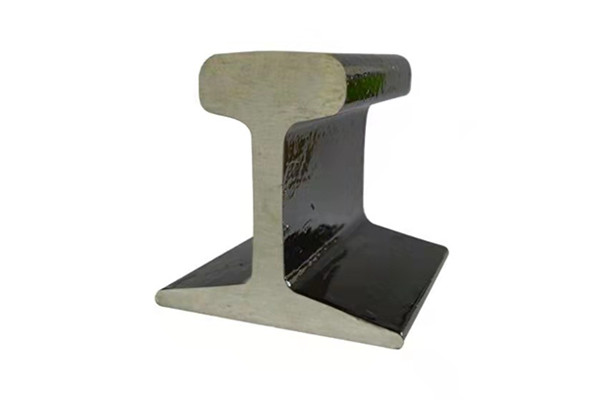

S49 Rail
Steel Rail

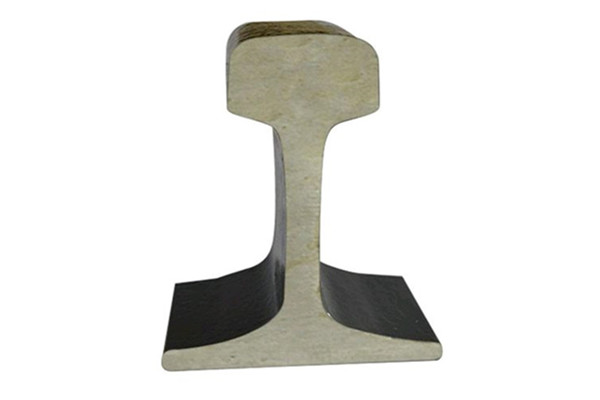

UIC54 Steel Rail
Steel Rail

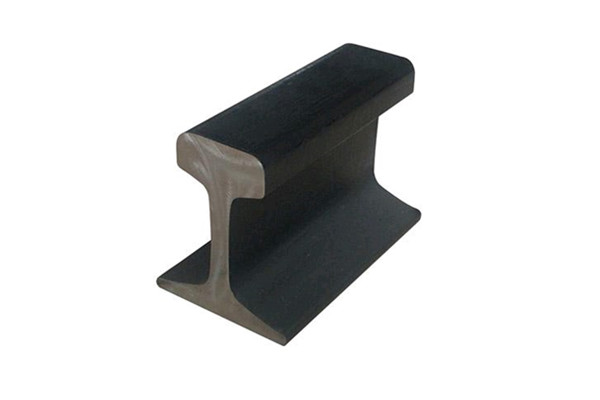

UIC60 Rail

Ps:Accept customized. Steel Rail pecifications could be customized as clients' requests.

Detailed Product Information

Classification of Steel Rails

The classification of steel rails is generally based on the standard length and is classified by rail weight. The heavier the rail, the more it can withstand greater axle loads and higher speed trains without causing damage. However, the heavier the rail, the higher the production cost.


Chinese standard steel rail
1. Crane rail: QU120, QU100, QU80 and QU70. They are generally made of manganese steel, and the largest unit weight is QU120 up to 118kg/m.
2. Heavy rail: 38kg, 43kg and 50kg rails are the most commonly used rails. 60kg and 75kg steel rails are generally used for high-speed, large-volume railways
3. Light rail: GB standard standard steel rail, YB standard steel rail. GB standard rails (Chinese National Standards) are 9, 12, 15, 22, 30kg/m. YB standard rails (standards of the metallurgical sector) are 8, 18, 24kg/m, etc.

International standard steel rail:
Internationally, as each country has its own steel rail production standards, the classification methods are not the same. Such as: British standard: BS series (90A, 80A, 75A, 75R, 60A, etc.) German standard: DIN series crane rail. International Union of Railways: UIC series. American Standard: ASCE series. Japanese standard: JIS series.


American Standard Steel Rail:
Specifications: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBs
Standard: ASTM A1, AREMA
Material: 700/900A/1100
Length: 6-12m, 12-25m

Size
 Dimensions (mm)
 Weight (kg/m)
A B C t
ASCE25
 38.1
 69.85
 69.85
 7.54
 12.4
ASCE30
 42.86
 79.38
 79.38
 8.33
 14.88
ASCE40
 47.62
 88.9
 88.9
 9.92
 19.84
ASCE60
 60.32
 107.95
 107.95
 12.3
 29.76
ASCE75
 62.71
 122.24
 122.24
 13.49
 37.2
ASCE85
 65.09
 131.76
 131.76
 14.29
 42.17
90RA
 65.09
 142.88
 130.18
 14.29
 44.65
115RE
 69.06
 168.28
 139.7
 15.88
 56.9
136RE
 74.61
 185.74
 152.4
 17.46
 67.41
175LBs
 109.86
 152.4
 152.4
 38.1
 86.8

UIC standard steel rail:
Specification: UIC50/UIC54/UIC60
Standard: UIC860
Material: 900A/1100
Length: 12-25m
Size Dimensions (mm)
 Weight (kg/m)
A B C t
UIC 54 70 159 16 54.43
UIC
 60 74.3 172 16.5 60.21

German standard steel rail:
Specifications: A55, A65, A75, A100, A120, S10, S14, S18, S20, S30, S33, S41R10, S41R14, S49
Standard: DIN536 DIN5901-1955
Material: ASSZ-1/U75V/U71Mn/1100/900A/700
Length: 8-25m

British standard steel rail:
Specifications: BS50O, BS60A, BS60R, BS70A, BS75A, BS75R, BS80A, BS80R, BS90A, BS100A, BS113A
Standard: BS11-1985
Material: 700/900A
Length: 6-18m 8-25m
Size
 Dimensions (mm)
 Weight (kg/m)
A B C t
BS50O
 52.39
 100.01
 100.1
 10.32
 24.833
BS60A
 57.15
 114.3
 109.54
 11.11
 30.618
BS60R
 57.15
 114.3
 109.54
 11.11
 29.822
BS70A
 60.32
 123.82
 111.12
 12.3
 34.807
BS75A
 61.91
 128.59
 114.3
 12.7
 37.455
BS75R
 61.91
 128.59
 122.24
 13.1
 37.041
BS80A
 63.5
 133.35
 117.47
 13.1
 39.761
BS80R
 63.5
 133.35
 127
 13.49
 39.674
BS90A
 66.67
 142.88
 127
 13.89
 45.099
BS100A
 69.85
 152.4
 133.35
 15.08
 50.182
BS113A
 69.85
 158.75
 139.7
 20
 56.398

Australian steel rail:
Specifications: 31kg, 47kg, 50kg, 60kg, 68kg, 73kg, 86kg, 89kg
Standard: AS1085
Length: 8-25m
Size
 Dimension(mm)
 Weight(kg/m)
 Material
 Length(m)
Head(mm)
 Height(mm)
 Bottom(mm)
 Web(mm)
31KG
 63.5
 117.5
 108
 11.5
 31.5
 900A/1100
 8-25
47KG
 70
 141.3
 127
 14.3
 46.5
 900A/1100
 8-25
50KG
 70
 154
 127
 15
 50.8
 900A/1100
 8-25
60KG
 70
 170
 146
 16.5
 61
 900A/1100
 8-25
68KG
 73.4
 186
 152
 17.5
 67.6
 900A/1100
 8-25
73KG
 70
 157
 146
 32
 73.63
 900A/1100
 8-25
86KG
 102
 102
 165
 84.11
 85.5
 900A/1100
 8-25
89KG
 102
 114
 178
 51
 89.81
 900A/1100
 8-25

Indian steel rail:
Specifications: ISCR50, ISCR60, ISCR70, ISCR80, ISCR100, ISCR120
Standard: IS3443-1980
Length: 9-12m

South African Rail:
Specifications: 15kg, 22kg, 30kg, 40kg, 48kg, 57kg
Standard: ISCOR
Length: 9-25m

Japanese and Korean standard rails:
Specification: 15kg, 22kg, 30kg, 37A, 50N, CR73, CR100
Standard: JIS E1103-91/JIS E1101-93
Material: implement JIS E standard
Length: 9-10m 10-12m 10-25m.


Size
 Dimensions (mm)
 Weight (kg/m)
A B C t
15KG
 42.86
 79.37
 79.37
 8.33
 15.2
22KG
 50.8
 93.66
 93.66
 10.72
 22.3
30A
 60.33
 107.95
 107.95
 12.3
 30.1
37A
 62.71
 122.24
 122.24
 13.49
 37.2
50N
 65
 153
 127
 15
 50.4
CR73
 100
 135
 140
 32
 73.3
CR100
 120
 150
 155
 39
 100.2


Production Process

Production Processing of the Steel Rails

Modern Steel rails are generally made of hot-rolled steel with an asymmetric circular I-beam profile. Because steel rails need to withstand very high pressure, they must be made of high-quality steel alloys. The stronger the rails, the more tough they are, the more they can carry heavier and faster trains.

China Steel Rails Manufacturer

Company Introduction

Kingrail Steel Rails

As an ISO 9001 certified company, Kingrail parts can produce all the standard steel rails mentioned above.In addition,we can produce various standard steel rails according to customers' drawings and reqiurements.
