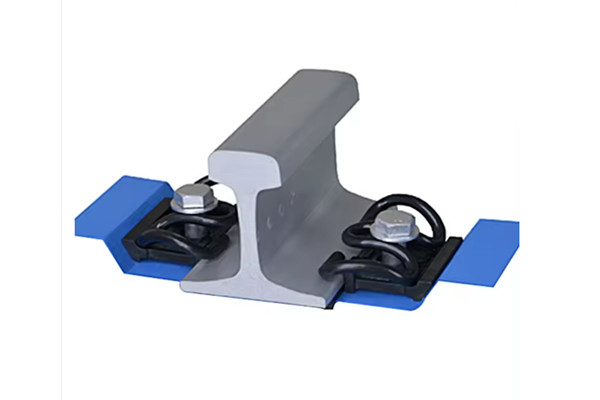

Rail fastening systems are used to secure rails to railway sleepers. The w14 rail fastening system meets the requirements of the PN-EN 13481-2:2017 standard.
Kingrail Parts can provide a complete set of w14 rail fastening system. Our w14 rail fastening system consists of screw spike, screw dowel, SKL tension clamp, guide plate and rail pad.
Specification:
| No. | Item | Spec. | Material | Coating | Quantity | Unit |
| 1 | W14 Rail Fastening System | 1 | Sleeper Sets | |||
| 1.1 | Plastic Nylon Screw Dowel | 31*165mm | PA6 | 4 | Pcs | |
| 1.2 | Rail Pad | 199*158*6mm | EVA | 2 | Pcs | |
| 1.3 | Angled Guide Plate | Wfp-14k | Reinforced PA66 | 4 | Pcs | |
| 1.4 | Tension Clamp | SKL-14 | 60Si2Mn, 60Si2Cr, 38Si7 | Electrostatic painting, Darcoet, Hot-dip galvanizing, Sherardizing | 4 | Pcs |
| 1.5 | Sleeper Screw with Plate Washer | Screw: 24*161, Washer:25*25*3.5 | Screw: 35# Plate: Washer: Q235, Screw: Class 5.6 | Darcoet, Hot-dip galvanizing, Sherardizing | 4 | Pcs |
