The ASCE 85 LB rail produced by Kingrail Parts is made of US standard ASCE, with a mass of 42,15 kg per meter.
The ASCE 85 LB rail produced by Kingrail Parts is mainly used for crane rails, factories, ports, railways, etc.
Specification
| Type of Rail | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | D | E | cm² | kg/m | ||
| ASCE 85 | ASCE | 131,80 | 131,80 | 65,10 | 39,30 | 14,30 | 53,74 | 42,15 |

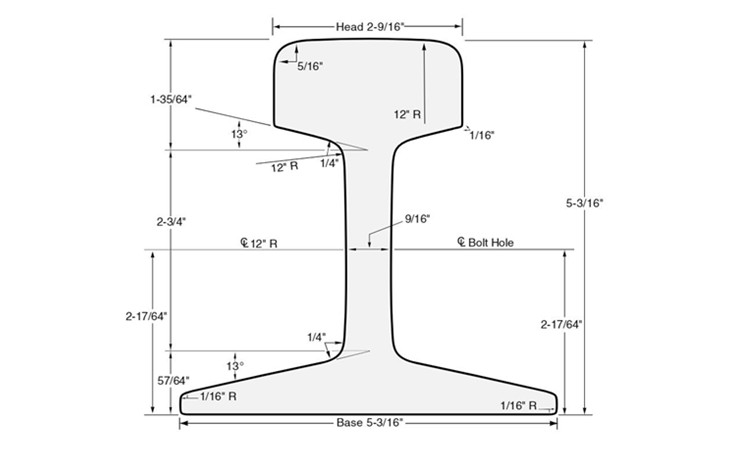

Drawing
