CR73 Rail is usually used in applications such as stacker/reclaimers, ports and pier cranes, crane rails, and mining rails.
The CR73 rail produced by Kingrail Parts is manufactured according to ARCELOR standard, with a length of 12 meters in length to 12 meters.
Specification:
| Standard | JIS E1103-93/ JISE1101-93 | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| CR 73 | 100 | 135 | 140 | 32 | 73.3 | U71Mn | 10-12 |

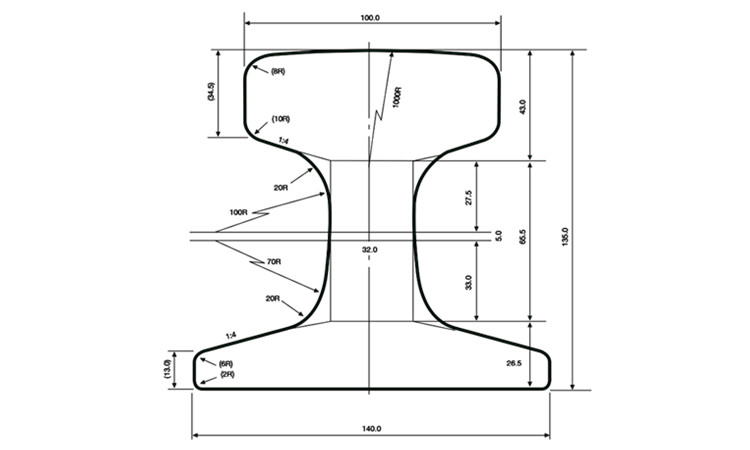

Drawing:
