MRS 87 A rails are often used for rail mounted gantry cranes (RMG) and other applications that need to install guide wheels on the device.
Our MRS87A crane rail is made according to ARCELOR specifications, with a mass of 86,80 kg/m.
Specification:
| Profile |
|
Dimensions mm | Section S | Mass m | |||
|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | ||
| MRS87A | ArcelorMittal Specifications | 152,40 | 152,40 | 101,60 | 34,90 | 108,90 | 86,80 |

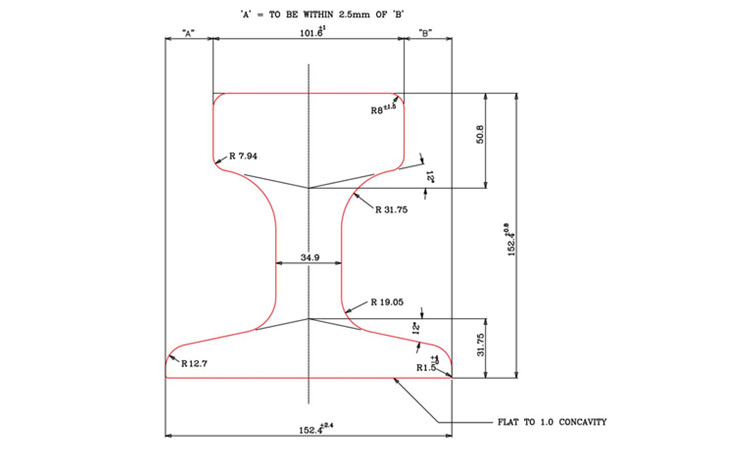

Drawing:
