The 18kg/m light rail is used in mining railroad line to transport ore or crane rail.
Kingrail Parts can provide 18kg rails, length 6m, 8m and 10m, material Q235 and 55Q..
Specification:
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| 18kg | 18.06 | Q235/55Q | 6-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 40 | 80 | 90 | 10 |

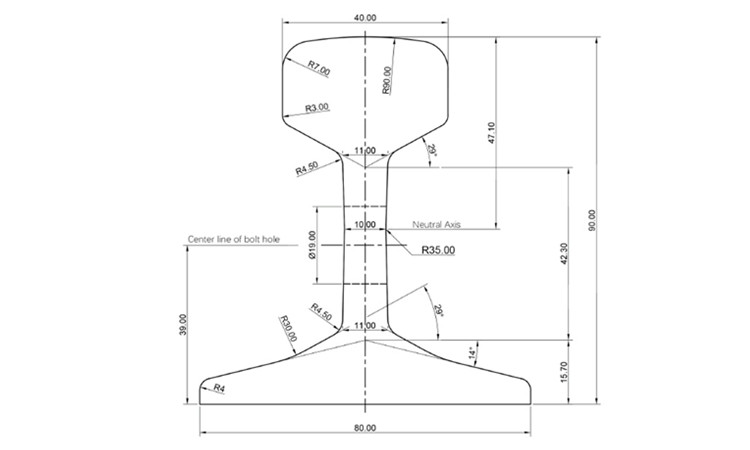

Drawing:
