JIS 18 rails can be used for train rails, mining rail, crane rails, etc.
We can provide JIS 18 rails. We can also provide related fasteners. Such as: weld able rail clamps, rubber pads, fishplates, etc.
Specification:
Material: Q235B and 55Q
Level: 6m, 8M, 10M and 12M
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| 18kg | 18.06 | Q235/55Q | 6-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 40 | 80 | 90 | 10 |

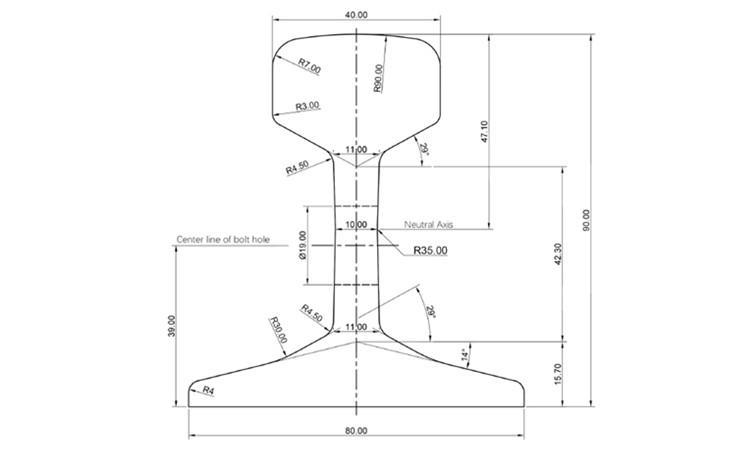

Drawing:
