43KG rails are mostly used for transportation, crane lifting equipment, and special railway lines for the larger mining roadways and factory buildings.
Kingrail Parts can provide Chinese standard rails, such as light rails, heavy rails and crane rails.
Specification:
|
Size
* |
Rail height(mm)
A |
Bottom Width(mm)
B |
Head Width(mm)
C |
Web Thickness(mm)
t |
Weight(kg/m)
* |
| 43kg | 140 | 114 | 70 | 14.5 |
44.653 |

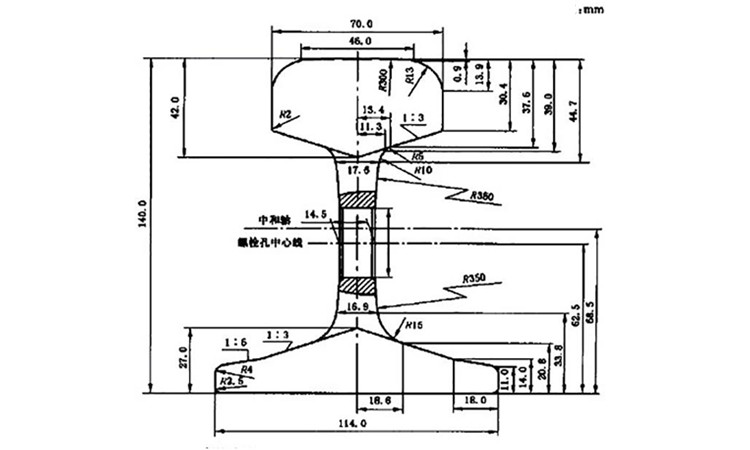

Drawing:
Manufacturing process
Raw materials--Pretreatment--Refining--Vacuum Degassing--Continuous Bloom Casting--Rolling--Heat treatment--Straightening--Inspection--Sawing and drilling--shipping
