AREMA 136lb 136RE TR68 rails are mainly used for railway rails, crane rails, underground mining rails, factories, ports, etc.
Kingrail Parts manufactures 136RE (TR68) rail according to the American standard AREMA, with a mass of 67.50 kg per meter.
Specification:
Dimensions: AREMA 136lb Rail, AREMA 136RE Rail. TR68 rail
Length: 12m~25m or other lengths according to customer requirements
Material: high strength, medium, standard
Standard: AREMA
| Rail Type: | 136 LB RAIL(TR68) |
|---|---|
| Nominal Weight(lbs/yd) | 136 |
| Standard Length | 39′, 80′ |
| Standard Drilling: | 3-1/2”×6” or 3-1/2”×6”×6” with 1-1/4” dia. holes |
| Rail Joint Length: | 24” or 36” |
| Rail Joint Weight: |
4-hole joint: 70 lbs/pr with hardware: 79 lbs/pr 6-hole joint: 117 lbs/pr with hardware: 130 lbs/pr |
| Rail Bolt: | 1”×6” |

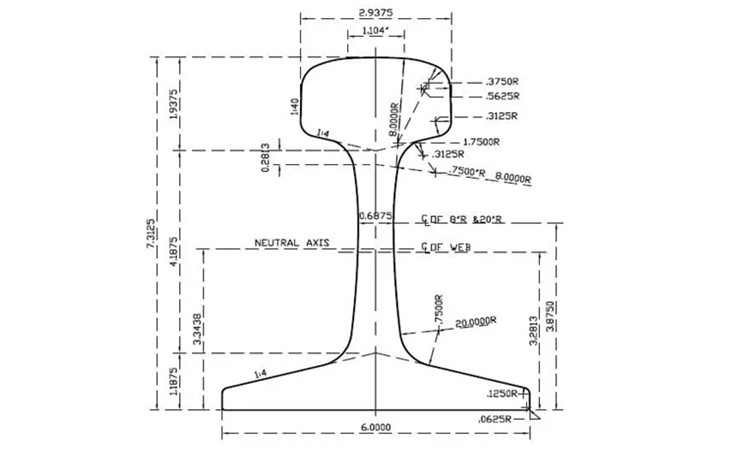

Drawing:
Manufacturing process
Raw materials -- Pretreatment -- Refining--Vacuum Degassing--Continuous Bloom Casting--Rolling--Heat treatment--Straightening--Inspection--Sawing and drilling--shipping
