Rail S20 is manufactured according to European standards, with a mass of 19.80 kg per meter.
Specification:
Type of light rail | Standard | Dimensions mm | Section S | Mass m | ||||
---|---|---|---|---|---|---|---|---|
H | F | K | S | cm² | kg/m | |||
European standard EN 13674-1 | ||||||||
S20 | DIN 5901 | 100 | 82 | 44 | 10 | 25,22 | 19,80 |

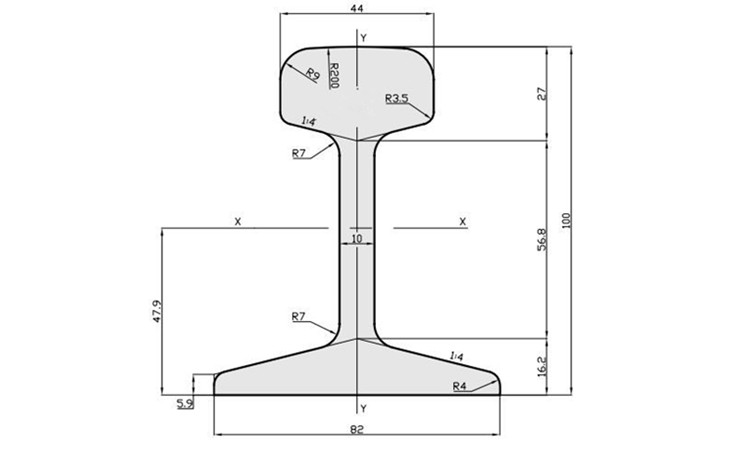

Drawing:
Manufacturing process
Raw materials -- Pretreatment -- Refining -- Vacuum Degassing -- Continuous Bloom Casting -- Rolling -- Heat treatment -- Straightening -- Inspection -- Sawing and drilling -- shipping
