S20 rails are mainly used in factory areas, ports, railways, etc.
The S20 rail is one of the light rails. The material of the S20 rail is RO700.
Specification:
Material: 55Q
Weight: 19.8kg/m
Level: 6-12M
Standard: DIN5901: 1955-11
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
S20 | 44 | 100 | 82 | 10 | 19.8 | RO700 | 6-12 |

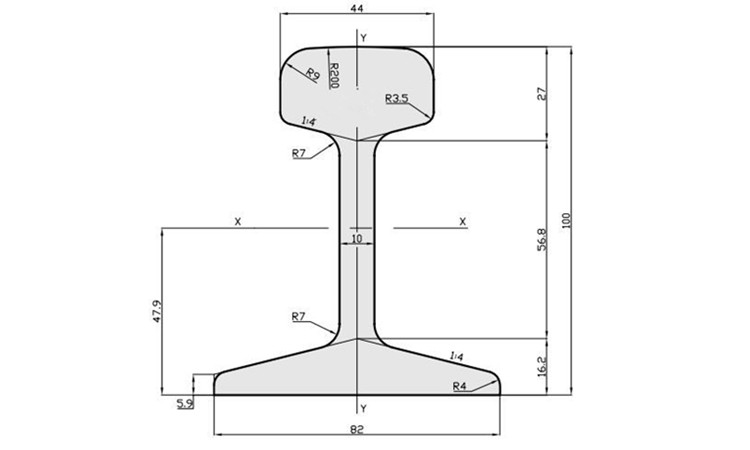

Drawing:
Manufacturing process
Raw materials -- Pretreatment -- Refining -- Vacuum Degassing -- Continuous Bloom Casting -- Rolling -- Heat treatment -- Straightening -- Inspection -- Sawing and drilling -- shipping
