What are the railway parts?

The railway line is composed of various railway parts, and in order to ensure the safety of driving, various railway parts need to be repaired and maintained regularly. There are many types of railway parts, and the parts that make up railway tracks include steel rail, rail sleeper, track bed, rail switch, rail clips, rail joints, railway spikes, rail tie plates, rail gauge rod, rail rubber pads, rail anchor rail shoulder ,rail dowel,rail insulator, etc. As an integral engineering structure, the steel track is laid on the roadbed, which plays a guiding role in the operation of the train and directly bears the huge pressure of rolling stock and its load. Under the power of train operation, its various components must have sufficient strength and stability to ensure that the train runs safely, smoothly and uninterrupted at the specified speed.

1. Steel rail is the main component of railway track. Its function is to guide the wheels of rolling stock to move forward, bear the huge pressure of the wheels, and transmit it to the sleepers. The rail must provide a continuous, smooth and least resistance rolling surface for the wheels. In the electrified railway or automatic block section, the rail can also be used as a track circuit.

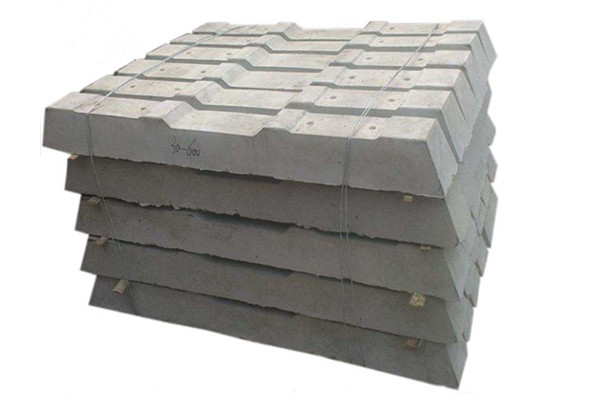

2. The rail sleeper must not only support the rail, but also maintain the position of the rail, and transfer the huge pressure from the rail to the track bed. It must have a certain degree of flexibility and elasticity, it will not work if it is hard, it will not work if it is soft.

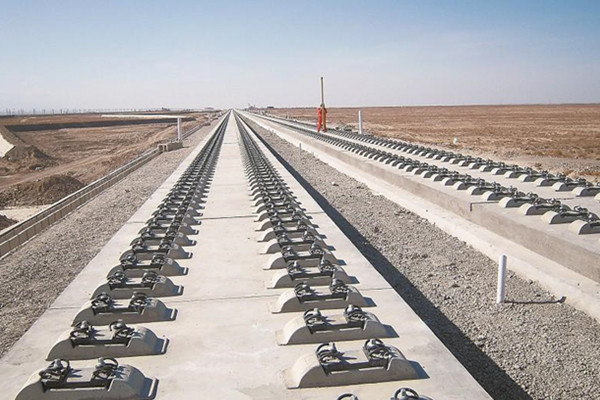

3. Rail track bed usually refers to the ballast (ballast) cushion laid on the roadbed surface under the sleepers. The main function is to support the sleeper and evenly distribute the huge load from the upper part of the sleeper to the roadbed surface, which greatly reduces the deformation of the roadbed.

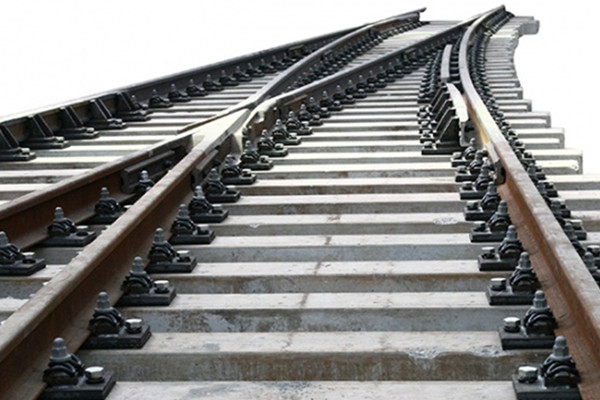

4. Rail turnout is a line connecting device that transfers rolling stock from one track to another. It is usually laid in large numbers at stations and marshalling yards. With rail turnouts, the passing capacity of the line can be fully utilized. Even if it is a single-track railway, it is possible to lay the turnouts and build a fork line longer than the length of the train, and the train can be opposite.

5. Railway bolts (also called fishplates bolts or railway anchor bolts) are used to fix steel rails or rail tie plates to cement or wooden sleepers, or to fix the connection between rail fishplates and steel rails.

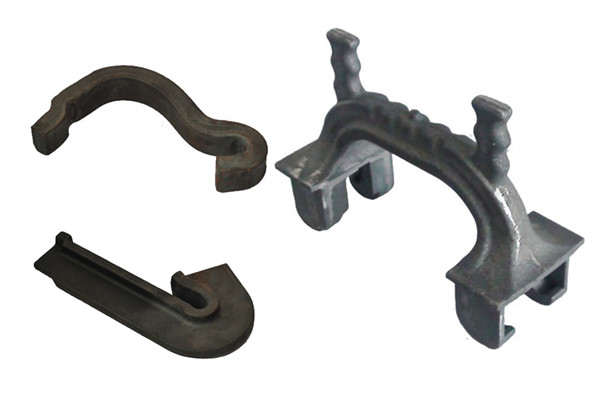

6. Rail clips, also called elastic rail clips, are mainly used to fix steel rails and rail tie plates on cement or wooden sleepers.

Rail clips

7. Rail support is a component installed on the outside of the rail in order to effectively resist the lateral force of the wheel and rail. Rail stays are generally installed on the outer side of the outer strands of the small-radius curved track to prevent excessive lateral force from causing excessive lateral displacement of the track when the train passes the curve, and even causing the rail to tip over.

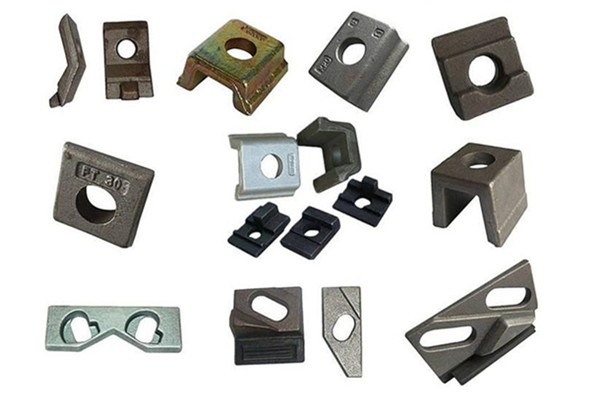

8. Rail Clamp, also called rail clip or rail fixing clip, is a kind of railway fixing device used to keep the horizontal position of rail track (especially crane rail track) unchanged, while allowing rail track to move longitudinally within a certain range.

9. Rail joints, also named railway fish plate, splice bar or rail joint bar, play a role in connecting rail joints. Fish plate is a kind of connection fastener used for connection between rail and rail, which is widely used in light rail, heavy rail and lifting rail.

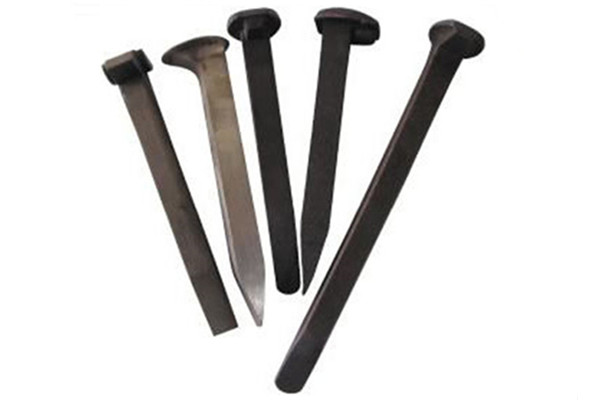

10. Rail dog spikes, also called track spikes, are large iron spikes with a biased head, usually used to fix steel rails and rail tie plates to wooden sleepers in railway tracks. Rail dog spike is a kind of railway spike. Its main function is to make the rail track fixed in a specific position without deviation.

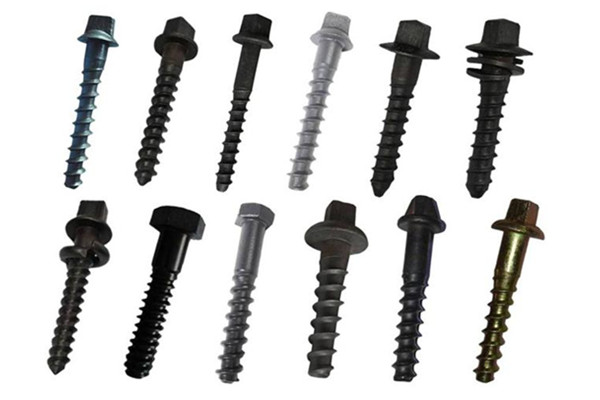

11. Rail screw spikes (also called sleeper screws or square head rail bolts) are medium or large metal screws used to fasten rail tie plates and rail track on the wooden or concrete sleepers. It is an important part of the railway fastening system.

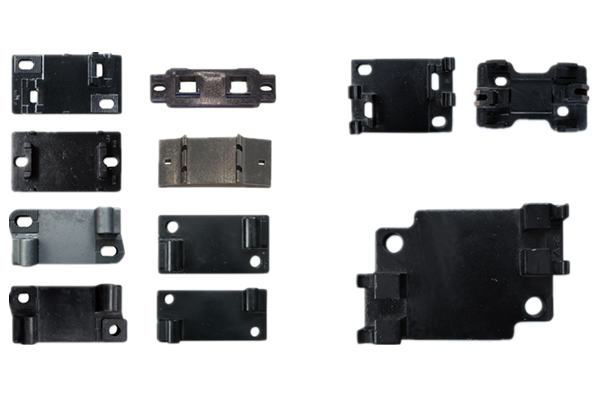

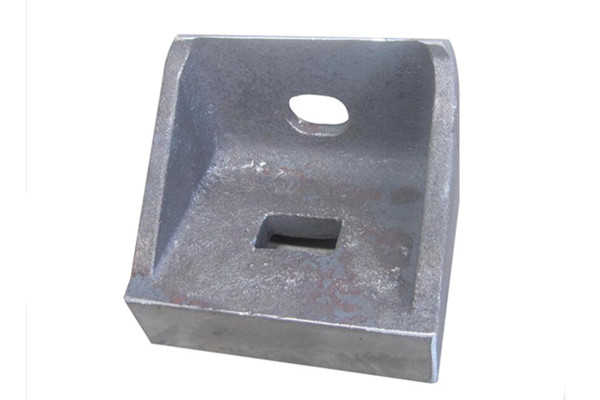

12. Rail tie plate, also known as rail baseplate or rail sole plate, is a steel plate used to connect railway track and sleeper. It is an important part of crane track or railway track support system.

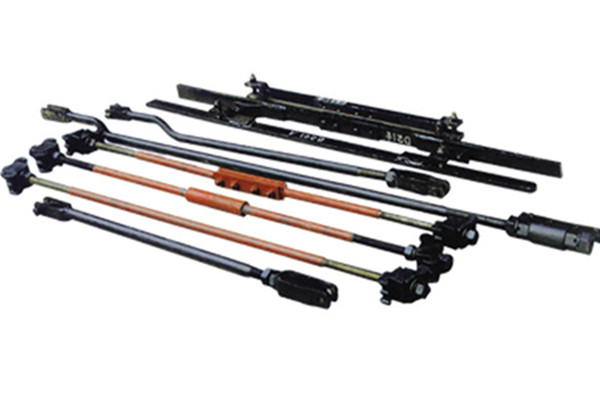

13. Rail gauge rod, also known as gauge tie rod or gauge tie bar, is a steel connecting rod installed between two rails. Rail gauge rod is mainly used to improve the lateral stability of the railway track and the maintenance of the rules of the railway track.

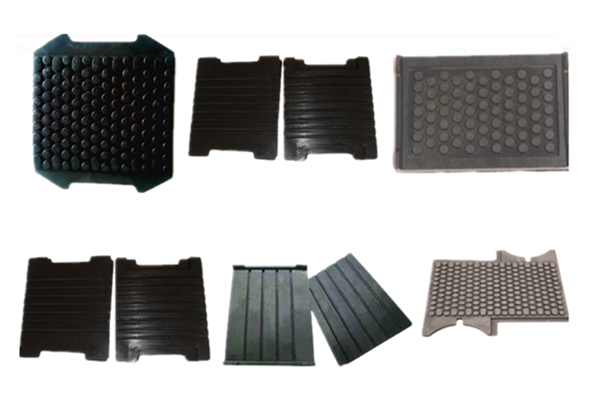

14. Rail rubber pad (also called rail pad) is made of elastic polyurethane pad and is installed between steel rail and concrete sleeper. It is an important part of the supporting structure of heavy crane rail tracks and railway tracks.

15. The railway anchor is a spring steel clip fixed on the lower side of the steel rail and leaning against the side of the railway sleeper, which is mainly used to prevent longitudinal movement of the rail track. The longitudinal movement of the rail track is mainly caused by the inertial force when the train is running or stopping, or the creep caused by the rail track temperature or rail track gradient change.

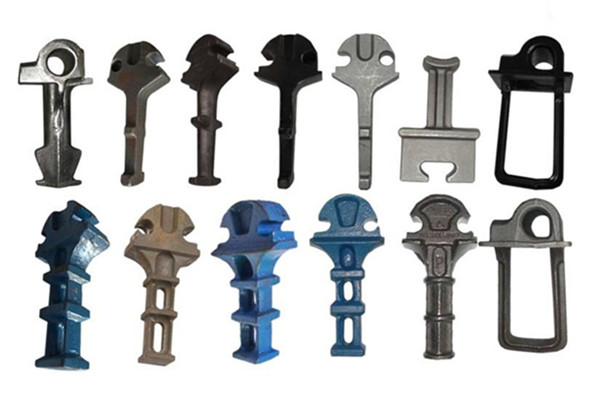

16. The rail shoulder is a pre-placed metal component before the concrete sleeper is poured. It is mainly used to fix the elastic rail clips and railway track on the railway foundation. Rail shoulders are semi-embedded parts, which are mainly divided into two categories: embedded rail shoulders and welded rail shoulders, both of which are used to fix rail clips for railway fastening system.

17. Railway dowel ,also called rail dowel/rail plastic dowel/rail plastic sleeve/plastic plug-in/concrete dowel/concrete insert/PA66 dowel, is a section of plastic tube embedded in the rail spike fixing hole of railway sleeper. It is mainly used for the opposite end fastener of rail screw spike or rail anchor bolts.

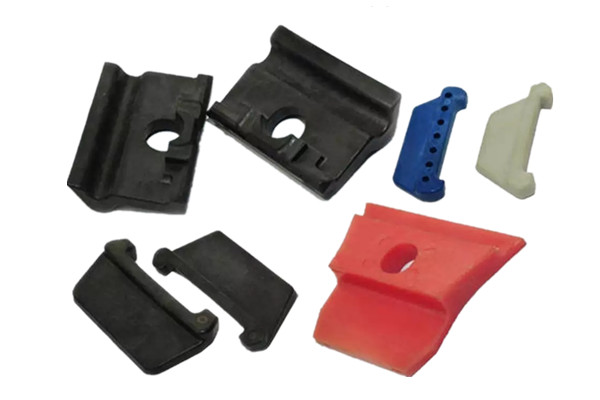

18. Rail insulator, also called rail nylon insulator, railroad insulator, is a plastic block installed between steel rails and rail tie plates.

There are many types of railway parts, and they play different roles on railway lines. In order to ensure driving safety, periodic inspection and maintenance of railway parts must be done. When railway parts have problems, they must be repaired and replaced in time. Kingrail is a professional manufacturer of railway parts. We provide various railway parts with high quality and low price. If you have any requirements for railway parts during the construction and maintenance of railways, or have any problems with the installation of railway parts, please contact Kingrail Parts in time. We will give you the most professional help.
