Jogging fish plate is a kind of railway fastener that is fixed to the end of steel rail with fish bolts to connect two sections of rails together.
Joggled fish plate Structure:

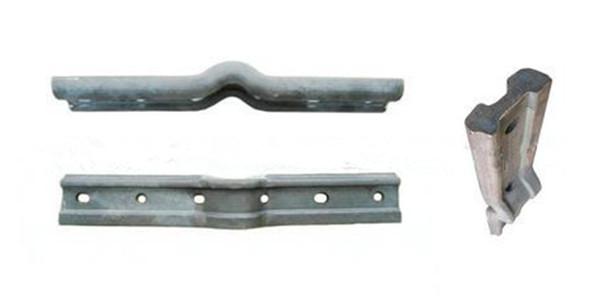

This is a specially designed fish plate with convexity in the center, which can accommodate newly welded welds until ultrasonic testing is performed, or defective welds are protected and weld failures are urgently repaired.
Joggled fish plate use :
The joggled fish plate can perform emergency repairs on the broken track part, which helps to maintain the stability and continuity of the train. This helps the train pass smoothly without stopping.
Joggled fish plate Features:
Jogging fishplates are known for their high tensile strength, durability, corrosion and heat resistance, ease of installation and use, and economy.
Joggled fish plate Application:
Joggled fish plate has 4 holes or 6 holes.
The joggled fish plate can be used to protect the welded joints of 60 kg rail or 52 kg rail.
The joggled fish plate can be used to protect welded joints from 52 Kg rail to 90 R rail.
Joggled fish plate suppliers:
Kingrail Parts can produce joggled fish plates with the same size as the customer's drawings. The blanks used to make fishplates are of good quality, free of lamination, cracks, surface defects and any rough edges.
Joggled fish plate drawing No.
Joggled Fish Plate for 60
kg |
T-5849 |
Clamp for J F P for 60 kg |
T-4016 |
Joggled Fish Plate for 52
kg |
T-5848 |
Clamp for J F P for 52 kg |
T-5551 |
