Kingrail Parts is one of the most professional track bolt manufacturers and suppliers in China. We can produce all kinds of track bolts.
Rail bolts, also called rail bolts, are used to fasten the ends of the rails together at the joints. The size of the rail bolt varies with the requirements of the rail section.

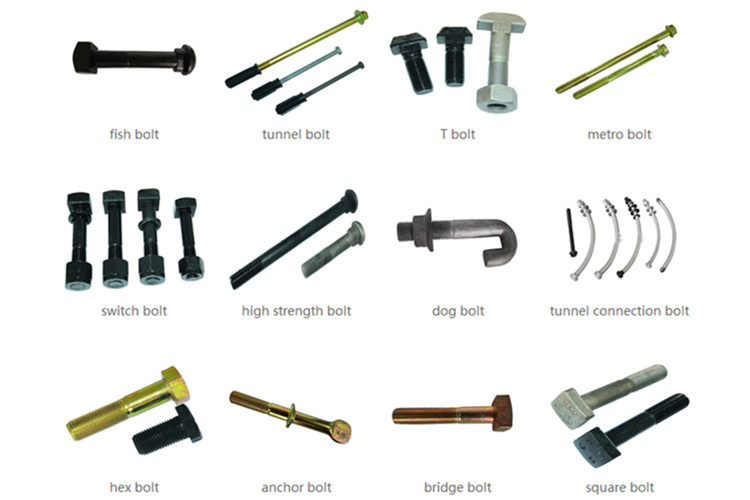

Track bolts can be divided into round head oval neck track bolts, diamond neck track bolts, track bolts NF F50-008, fish tail bolts, Russian standard track bolts, clamp bolts and insert bolts. Special bolts such as anchor bolts and T-clamp bolts.
Types of Track Bolts:
Button head oval neck track bolt |
Material: Carbon steel |
---|---|
Diamond neck track bolt |
Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 10.9 Standard: UIS864-2 Surface: plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing |
Rail bolt NF F50-008 |
Material: Q235, 35#, 45#,, 40Cr Grade: 4.6, 5.6, 8.8 10.9 Certificate:ISO9001:2008 Surface: plain (oiled), Oxide black, Zinc, HDG |
Clip bolt with BSW thread |
Material: Q235, 35#, 45#, 40Cr Grade: 4.6, 5.6, 8.8, 10.9 Certificate:ISO9001:2008 |
Fish bolt used for rail joints (with railnuts and spring washers) |
Material: Q235, 35#, 45#,, 40Cr , C45 Grade: 4.8, 8.8, 10.9 Size: 22×135, 24×135, 24×145 Surface: plain (oiled), Oxide black, Zinc, HDG Types: BS standard, R54 rail in Indonesia, AS1085.4-1999, Russian standard, AREMA standard, etc. |
Clip bolt HS26 & HS32 |
This type of bolt is used to connect base plates and rail clamps together with nuts and washers. Two types of clip bolts are available: with square neck or without neck. Standard: UIS864-2 Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Standard: UIC, GB, BS, DIN and GOST or ISO, etc. Surface: Plain, black painting or upon customer requirement For rail types: M20 X 60 30Kg rail, M20 X 75 30Kg rail, M22 X 66 40Kg rail, M22 X 80 48Kg rail, etc. |
Clamp bolt and inserted bolt for Russia |
Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Size: M22 ×75, M22 ×175 Surface: Plain, black painting or upon customer requirement |
Anchor bolt |
We produce rail anchor bolt for concrete sleeper rail fastenings or for crane rail fastening systems. Material: Q235 Grade: 4.6, 5.6, 8.8 Surface: Plain, black painting or upon customer requirement Type: L type,J type, I type, curve bolt, or the type by customers’ drawings |
T-bolt |
Material: Q235, 45# Standard:GB37-88 Size: M5-48 Grade: 4.6, 5.6, 8.8, 10.6, 12.9 Surface: Natural or according to customers' requests |
Special bolt |
Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Surface: Plain, black painting or upon customer requirement |
Tunnel bolt |
Type :available by customers drawings and samples . Surface: plain (oil ) black.zin .HDG etc Class:4.6.4.8.8.8.10.9. Types: Square flange bolts with round thread, special curve bolt, spear bolts with special pitches, etc. |
