Kingrail Parts is one of the best railway clips suppliers & manufacturers in China, and has passed ISO9001-2008 certification.
Our rail clips products are ideal for rail assembly. They have the advantages of easy installation during rail laying; economical maintenance; durability and long service life; and quick replacement.
Railway Clip Definition:
Railway clips are a popular rail fastening component used to fix steel rails on sleepers (wood sleepers and concrete sleepers). Rail clips are also used in some rail fastening systems.
Rail Clip Manufacturing Process:
1. Procurement of raw materials
2. Cut
3. Heat to forging temperature
4. Forming
5. Hardening
6. Tempering
7. Surface treatment
8. Inspect the packaging

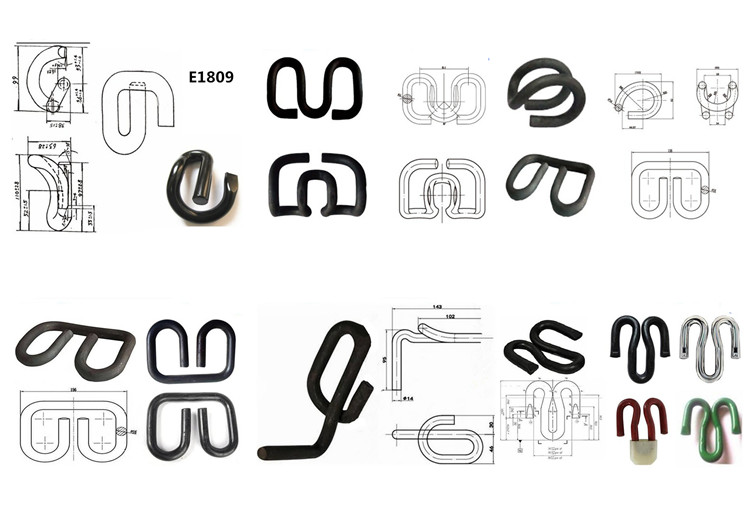

Types of Railway Clips:
1. E clip: E1609, E1809, E1813, E2001, E2039, E1817, 2. E2006, E2007, E2009, E2055, E2056, E2063, E2091.
3. SKL tension clamp: SKL1, SKL3, SKL12, SKL14, SKL75
4. PR series clips: PR85, PR309A, PR401, PR415, PR401A
5. Other rail clips: Nabla clip, D-shaped rail clip, Fast clip, gauge lock clip, Deenik clip
6. Non-standard rail clips: You provide rail clips drawings, and we will produce them according to your customized requirements.
| Series | Type | Hardness | Material | Fatigue life | Surface | Standard |
|---|---|---|---|---|---|---|
| E rail clip | E1,E2,E3 | 44-48HRC |
60Si2MnA: C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7: C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking. |
plain (oiled), Oxide black, color painting or according to customer requirement. |
DIN17221, BS970, GB/T1222 |
| E1609 | ||||||
| E1809 | ||||||
| E1817 | ||||||
| E2001 | ||||||
| E2006 | ||||||
| E2009 | ||||||
| E2055 | ||||||
| E2056 | ||||||
|
Vossloh clip& Forged rail clip |
SKL1 | 42-47HRC | ||||
| PR rail clip | PR309 | 44-48HRC | ||||
| PR401 | ||||||
| PR601 | ||||||
| PR85 | ||||||
| We can also produce customized rail clips according to your drawings or samples! | ||||||
