ASCE rail is a type of railway defined by the American Society of Civil Engineering. It is mainly used for temporary traction rails or light rails in forest areas, mines, and construction areas. ASCE rail size is usually specified by its weight per yard.
ASCE rails are not only popular in the US market, but also popular in Europe, Asia and other markets.

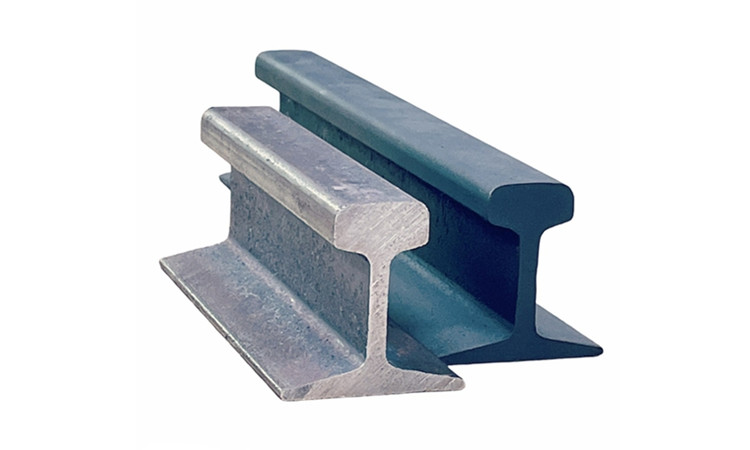

ASCE rails have a T-shaped rail profile and a flat bottom. Its height is equal to the width of the base of each weight. The weights of the head, webs, and feet in the specified section are fixed at 42%, 21%, and 37%, respectively.
Hot Sale ASCE30 Rails:
The ASCE 30 rail is one of the best-selling ASCE rails in the United States and other countries. ASCE 30 rails are also called 30 lbs/yard ASCE rails and weigh 30 lbs. Per yard. Due to its moderate size, ASCE 30 rail is suitable for most standard load rail cranes, so sales are good.
ASCE Rail Specifications:
Type | Dimension(mm) | Weight(kg/m) | Standard | |||
---|---|---|---|---|---|---|
Head | Height | Base | Waist | |||
ASCE 12 | 25.4 | 50.8 | 50.8 | 5.95 | ASTM A1 | |
ASCE 20 | 34.1 | 66.7 | 66.7 | 6.4 | 9.92 | |
ASCE 25 | 38.1 | 69.8 | 69.8 | 7.5 | 12.4 | |
ASCE 30 | 42.9 | 79.4 | 79.4 | 8.4 | 15.2 | |
ASCE 40 | 47.6 | 88.9 | 88.9 | 9.9 | 19.9 | |
ASCE 50 | 54 | 97.8 | 98.4 | 11.1 | 25 | |
ASCE 60 | 60.3 | 108 | 108 | 12.3 | 29.8 | |
ASCE 70 | 61.9 | 117.5 | 117.5 | 13.1 | 34.5 | |
ASCE 75 | 62.7 | 122.2 | 122.2 | 13.5 | 37.2 | |
ASCE 80 | 63.5 | 127 | 127 | 13.9 | 39.8 | |
ASCE 85 | 65.1 | 131.8 | 131.8 | 14.3 | 42.3 |
ASCE Rail Suppliers:
As a professional railway rails supplier from China, Kingrail Parts has ASCE rails stocks ranging from 25lb/yd to 85lb/yd and other railway tracks for sale.
