Rail Fish Plate Definitions:
Rail joints/joint bar, commonly known as rail fish plate, is a metal bar, which is bolted to the ends of two rails and connects them to form a rail. It is generally composed of clamps and fish bolts, which can be detached and reused. The price varies according to the weight.
Rail Fish Plate Applications:
Railway fishplates are widely used in heavy rail, light rail and crane rail. For different standards of rails, railway fishplates are different:
Light rail fish plate: 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg
Railway fish plate for heavy rail: 38kg, 43kg, 50kg, 60kg
Railway fish plate for crane rail: QU70, QU80, QU100 and QU120

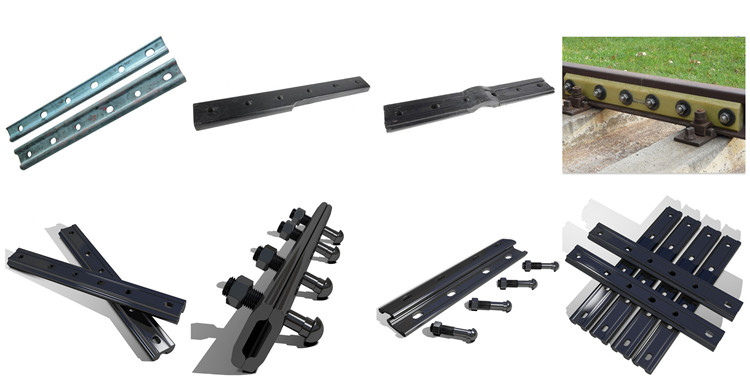

Types of Rail Fish Plates:
1.Common fish plate:
There are 4 holes or 6 holes fish plate, suitable for 60kg, UIC, 54kg UIC, 52kg UIC, 52kg, 90A, 90R, 80A, 75R, 60R, 115RE, 132RE, 50R rails, etc.
2. Joggled fish plate:
This is a special forged fish plate with a simple structure. It can quickly and temporarily repair the welded rail joints, allowing it to continue to cross the rail at a reduced linear speed.
3. Insulation fish plate:
The size of the insulated rail joint is the same as the common rail joint. Insulated rail joints are generally used in railway sections or leaky sections near power plants.
4. Compromise rail joints
Compromise rail joints are basically customized, mainly used for turnout expansion joints or the appearance of some railway sections with special designs and requirements.
Hot-selling Fish Plate Dimensions:
| Standard | Type | Length/Diameter | Weight /Material | |
|---|---|---|---|---|
| AREMA 2007 | 115RE | 4 hole-24" | 17.04Kg | 45# chemical |
| 115RE | 6 hole-36" | 25.56Kg | composition(%): | |
| 132-136RE | 4 hole-24" | 17.75Kg | C: 0.42-0.50 | |
| 132-136RE | 6 hole-36" | 26.63Kg | Mn: 0.50-0.80 | |
| UIC864 | UIC60 | 4 hole-630/Φ26 | 18.07Kg | Si: 0.17-0.37 |
| UIC60 | 4 hole-600/Φ28 | 17.47Kg | Cr: ≤0.25 | |
| UIC60 | 4 hole-630/Φ25 | 18.1Kg | P: ≤0.035 | |
| UIC54 | 4 hole | 14.34Kg | S: ≤0.035 | |
| UIC54 | 6 hole-800 | 19.94Kg | ||
| BS 47-1 | BS75R | 4 hole | 6.56Kg | |
| BS60A | 4 hole | 5.61Kg | ||
| BS80A | 4 hole | 6.5Kg | ||
| BS90A | 685.8/Φ26 | 13.23Kg | 50# chemical | |
| BS90A | 792.9/Φ26.2 | 15.34Kg | composition(%): | |
| BS100A | 4 hole | C: 0.62-0.70 | ||
| 90/91LB | 4 hole | 18.08Kg | Mn: 0.50-0.80 | |
| 90/91LB | 6 hole | 19.9Kg | Si: 0.17-0.37 | |
| AS | 50kg | 4 hole | 14.3Kg | Cr: ≤0.25 |
| 50kg | 6 hole | 19.5Kg | P: ≤0.035 | |
| S49 | 4 hole | 9.71Kg | S: ≤0.035 | |
International Standards for Fish Plate:
| Fishplate for UIC Standard Steel Rail | |||
|---|---|---|---|
| Steel Rail Type | Steel Rail Weight (KG/M) | Fishplate Standard | Fishplate Material |
| UIC54 | 54.43 | UIC | 45#,55# |
| UIC60 | 60.34 | ||
| Fishplate for BS Standard Steel Rail | |||
| BS50'O' | 24.833 | BS 47-1 |
55#,45# European Grade 700 |
| BS60A | 30.618 | ||
| BS75R | 37.041 | ||
| BS80A | 39.761 | ||
| BS90A | 45.099 | ||
| BS100A | 50.182 | ||
| BS113A | 56.398 | ||
| Joint Bar for AREMA 2007 Standard Steel Rail | |||
| 100RE(TR50) | 50.35 | AREMA 2007 |
45#,55#, AREMA Grade Steel |
| 115RE | 56.9 | ||
| 115-119RE | |||
| 132RE | 65.31 | ||
| 133RE | 66.1 | ||
| 136RE | 67.41 | ||
| 132-136RE | |||
| Fishplate For Chinese Standard Steel Rail | |||
| GB15KG | 15.2 | YB226-63 | Q235,45# |
| GB18KG | 18.06 | YB225-63 | |
| GB22KG | 22.3 | YB14-63 | |
| GB24KG | 24.46 | ||
| GB30KG | 30.1 | YB351-63 | |
| GB38KG | 38.733 | TB/T 2345-2008 | 45#,55# |
| GB43KG | 44.653 | ||
| GB50KG | 51.514 | ||
Rail Fish Plate Suppliers:
Kingrail Parts is a professional supplier of rail fishplates. We provide various standard fishplates. Please send your drawings and requirements, and we will provide a free quote.
