What are Bolts in Railway Tracks?
Bolts in railway tracks, also called track bolts, are used to fasten the ends of the rails together at the rail joints.
Size of Bolts in Railway Tracks
The size of the rail bolt varies with the requirements of the rail section. The proper track bolt diameter and length can be determined by checking the applicable railway standards.
Advantages of Railway Track Bolts:
1. The hole preparation is the same as traditional/old rail bolts
2. Convenient and quick to use.
3. Save time and money
Types of Railway Track Bolts

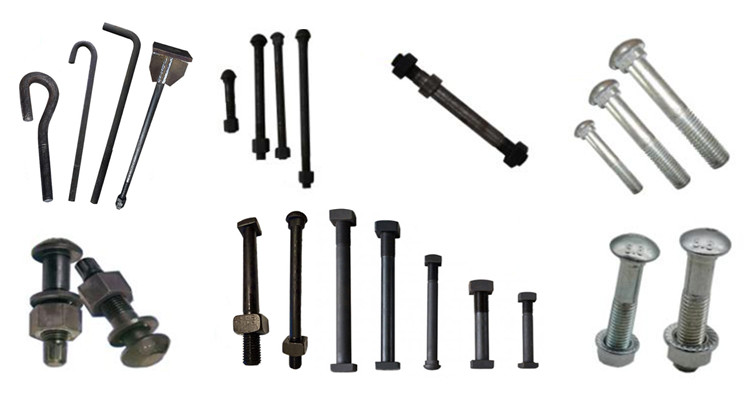

Track bolts can be divided into round head oval neck track bolts, diamond neck track bolts, track bolts NF F50-008, fishtail bolts, Russian standard track bolts, clamp bolts, clip bolts and insert bolts. Russia, special bolts such as anchor bolts, T-clamp bolts, etc.
1.Fish bolt
Fishtail bolts are bolts used to fasten fishplates. Railway fishplates are generally used at the junction of two rails on the railway to fix two sections of rails. Fishbolt needs to be used in conjunction with the nut. When purchasing, please choose fishtail bolts that match the hole size and thickness of the fishplate.
Railway fishtail bolts
1) Square head fish bolt
Size: M20, L as ordered
Grade: 4.6, 5.6
Standard: DIN5903-2 Type B
Surface treatment: Zinc plated, hot dip galvanized
2)Cup head oval neck fish bolt
Size: M18, M20, M22, M24, L as ordered
Materials: Middle carbon steel
Standard: AS 1085.4, 6&7
Surface treatment: Black
3) BHON track bolt
Size: Dia. 5/8"-1-1/2", Length1-1/2"-13"
Grade: Gr2, Gr5, Gr8
Standard: AREMA & SAE J429
Surface treatment: Black, Zinc plated
4) BHDN track bolt
Size: Dia. 15/16"-1-1/2", Length1-1/2"-13"
Grade: Gr2, Gr5, Gr8
Standard: AREMA & SAE J429
Surface treatment: Black
Application areas: North America
5)Day mark fish bolt
Size: A30, B30, A37, B37, A50, B50, B40N
Grade: 4.6, 5.6, 6.8, 8.8, 10.9
Standard: JIS E1107
Surface treatment: Black, Zinc plated, plain oiled
2. Rail bolts (chuck bolts and chuck bolts) for rail fastening systems
On railway lines, in order to fix the rails, we use a single unit rail fastener (rail fastening system). Such as rail tie plates, rail clips, rail clips, rubber pads, plastic dowels. Clip bolts and clamping bolts are part of the rail fastening system.
1) Clip bolt
Clip bolts, used with rail clamps. In the high-speed WJ-7 rail fastening system, T-bolts and B1 anchor bolts are required. They need to match the elastic rail clip.
2) Clamping bolt
In the KPO clamp rail fastening system, we use HS bolts to mate with KPO clamps.
3) Frog bolt
As an important part of railway lines, railway frog needs to use rail bolts with special strength, called frog bolts.
1) BHON track bolt& Square head frog bolt
Size: Dia.3/4"-1-1/8", Length1-1/2"-6-1/2"
Grade: Gr2, Gr5, Gr8
Standard: AREMA & SAE J429
Surface treatment: Black
2) Heavy Hex Head Frog Bolts
Size: Dia.3/4"-1-3/8", Length up to 30"
Material: A325
Standard: ASTM A325
Surface treatment: Black, Zinc plated
3. Track bolts used to fix different runways
Due to the different loads and running speeds on the rail, you need to buy fastened rail bolts of appropriate strength and size. We are a manufacturer and supplier of railway equipment. Tell us your requirements and we can provide suitable track bolts for your runway.
Crane hook bolt (J type bolt)
Light rail track bolts
Rail bolts for subway and tram tracks
1) Hook bolts(J bolt)
Size: Dia. M20-M36
Grade: 4.6, 5.6, 8.8
Standard: UIC864 & DIN529
Surface treatment: Plain & Oiled, Oxide Black, Zinc Plated, Hot Dip Galvanized, etc
Raw material: Low Carbon Steel, Medium Carbon Steel, Alloy Steel
2) B30 Bolt for Metro
Size: Dia. 30mm
Material: Low carbon steel Q235
Surface treatment: Dacromet
4. Anchor bolts
Anchor bolts are inserted into the base or underground structure to secure the rails in place. A part of the anchor bolt is embedded in the base (usually a concrete structure), and the exposed part is fixed on the rail by cooperating with other fasteners. Common models such as M18, M20, M24 anchor bolts.
1) Insert bolt
Size: M18, M22, L=135, 167, 175, 195mm
Materials: Q235, C35, C45, 35CrMo, 42CrMo
Standard: NF F50-010
Surface treatment: Zinc plated, hot dip galvanized
Application: Anchored in concrete sleeper, fastening together with nuts and washers for spring blade type fastening system.
2) Anchor bolt
Size: M16 to M48, L=100 to 500mm
Material: Q235, C35, C45, 35CrMo, 42CrMo
Standard: DIN529, ISO898-1
Surface treatment: Oxide black, Zinc plated, hot dip galvanized, Dacromet, Sherardized
Application: Anchored in concrete sleeper for K type fastening system.
5. Railway track bolts of different standards
The different standard parameters of track bolts are as follows for your reference:
1) British standard track boltⅠ
Size: Dia. 3/4", 13/16", 7/8",15/16",1", L=3-7/8", 4-3/8", 4-5/16", 5", 6-1/4"
Materials: Normal strength, High strength
Standard: BS64
Surface treatment: Black
Application areas: British countries
2) British standard track bolt Ⅱ
Size: 7/8" x BSF4-7/8", or BSW4-1/8"
Materials: Normal Strength
Standard: BS64
Surface treatment: Black
Application areas: British countries
3) British standard track bolt Ⅲ
Size: 15/16" x BSF4-1/2", or BSW4-7/8"
Materials: Normal strength, High strength
Standard: BS64
Surface treatment: Black
Application areas: British countries
4) Russia scale fish bolt
Size: 27x160
Materials: Tensile stress 381KN
Standard: GOST 11530
Surface treatment: Plain oiled
5)German standard track boltⅠ
Size: M22, L=110mm, 120mm, M24, L=105 to 200mm
Grade: 4.6, 5.6
Standard: DIN5903-2 Type C
Surface treatment: Zinc plated, hot dip galvanized
6)German standard track bolt Ⅱ
Size: M20
Grade: 4.6, 5.6
Standard: DIN5903-1
Surface treatment: Zinc plated, hot dip galvanized
Railway Tracks Bolts Manufacturer:
We are a professional supplier of wholesale and customized rail bolt products. Our rail fasteners have passed ISO9001-2000 and CE certification, meeting the high-standard railway equipment quality requirements of the European Union.
Over the years, we have provided track bolts and supporting railway products to hundreds of customers in dozens of countries. Arema. BS, GB, UIC and DIN standard types of rail bolts and abrasives are available, ready to start production.
