Kingrail Parts is one of the largest track bolt suppliers & factory in China. Over the years, we have provided track bolts and supporting railway products to hundreds of customers in dozens of countries.
What is a track bolt?
Track bolts, also known as square bolts or track anchor bolts, are mechanical railway parts, consisting of a head and a screw (cylinder with external thread), with a cylindrical threaded nut. Bolts are used to fasten the connection with the two-hole parts.
Rail bolts are used to fix rails and rail chairs on sleepers, or to fix rail joints on connecting rails.

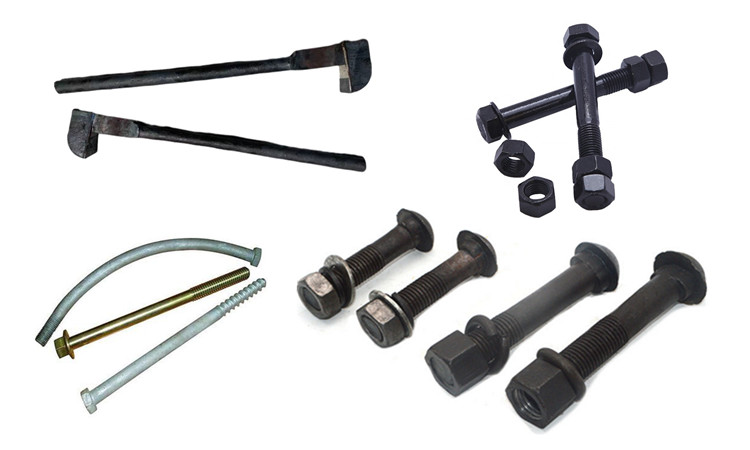

Types of Track Bolt:
Track bolts can be divided into round head oval neck track bolts, diamond neck track bolts, track bolts NF F50-008, fish tail bolts, Russian standard track bolts, clamp bolts, clip bolts and Russian bolts, etc. Special bolts such as anchor bolts, clamps T-bolt, etc.
|
Button head oval neck track bolt |
Material: Carbon steel |
|---|---|
| Diamond neck track bolt |
Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 10.9 Standard: UIS864-2 Surface: plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing |
| Rail bolt NF F50-008 |
Material: Q235, 35#, 45#,, 40Cr Grade: 4.6, 5.6, 8.8 10.9 Certificate:ISO9001:2008 Surface: plain (oiled), Oxide black, Zinc, HDG |
| Clip bolt with BSW thread |
Material: Q235, 35#, 45#, 40Cr Grade: 4.6, 5.6, 8.8, 10.9 Certificate:ISO9001:2008 |
| Fish bolt used for rail joints (with railnuts and spring washers) |
Material: Q235, 35#, 45#,, 40Cr , C45 Grade: 4.8, 8.8, 10.9 Size: 22×135, 24×135, 24×145 Surface: plain (oiled), Oxide black, Zinc, HDG Types: BS standard, R54 rail in Indonesia, AS1085.4-1999, Russian standard, AREMA standard, etc. |
| Clip bolt HS26 & HS32 |
This type of bolt is used to connect base plates and rail clamps together with nuts and washers. Two types of clip bolts are available: with square neck or without neck. Standard: UIS864-2 Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Standard: UIC, GB, BS, DIN and GOST or ISO, etc. Surface: Plain, black painting or upon customer requirement For rail types: M20 X 60 30Kg rail, M20 X 75 30Kg rail, M22 X 66 40Kg rail, M22 X 80 48Kg rail, etc. |
| Clamp bolt and inserted bolt for Russia |
Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Size: M22 ×75, M22 ×175 Surface: Plain, black painting or upon customer requirement |
| Anchor bolt |
We produce rail anchor bolt for concrete sleeper rail fastenings or for crane rail fastening systems. Material: Q235 Grade: 4.6, 5.6, 8.8 Surface: Plain, black painting or upon customer requirement Type: L type,J type, I type, curve bolt, or the type by customers’ drawings |
| T-bolt |
Material: Q235, 45# Standard:GB37-88 Size: M5-48 Grade: 4.6, 5.6, 8.8, 10.6, 12.9 Surface: Natural or according to customers' requests |
| Special bolt |
Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Surface: Plain, black painting or upon customer requirement |
| Tunnel bolt |
Type :available by customers drawings and samples . Surface: plain (oil ) black.zin .HDG etc Class:4.6.4.8.8.8.10.9. Types: Square flange bolts with round thread, special curve bolt, spear bolts with special pitches, etc. |
