Metal Fish Plate for steel rails, also known as rail joint bar or splicing bar, is a typical rail component in railway track systems. Fish bolts are railway fasteners that work with rail fishplates.
Steel rail fishplates are bolted to the ends of two rails to connect them together, and are widely used in light rails, heavy rails and crane rails.
Metal Fish Plate Application:

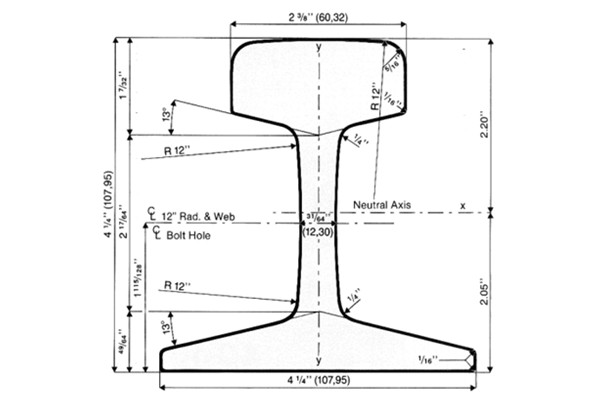

Railway fishplates are widely used in heavy rail, light rail and crane rails, and railway fishplates are different for different standard rails. More than 30 kinds of railway fishplates can be produced according to different standards:
Light rail fish plate: 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg
Railway fish plate for heavy rail: 38kg, 43kg, 50kg, 60kg
Railway fish plate for crane rail: QU70, QU80, QU100 and QU120
Types of railway fish plate

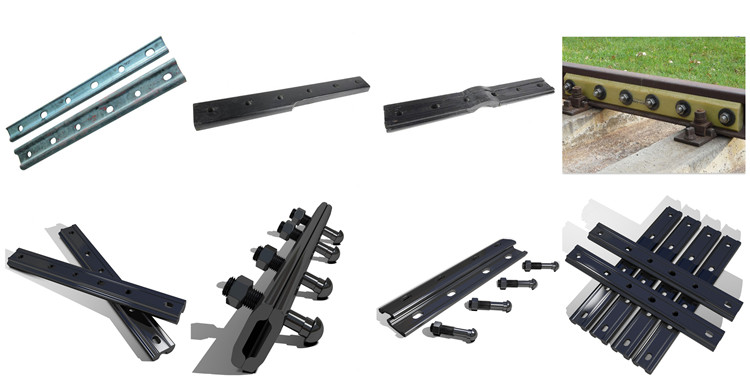

1.Bolted fish plate
For railway fishplates, bolt connections are usually used to connect the rails together before welding.
2.Compromised fish plate
For connecting two rails with different rail sections, compromise joints are often used.
3. Insulated fish plate
Insulated rail rail joints are always used as bonded or non-bonded joints.
4.Joggled fish plate
Joggled fishplates are used for temporary welding of railway tracks.
Hot fish plate:
Standard | Type | Length/Diameter | Weight /Material | |
---|---|---|---|---|
AREMA 2007 | 115RE | 4 hole-24" | 17.04Kg | 45# chemical |
115RE | 6 hole-36" | 25.56Kg | composition(%): | |
132-136RE | 4 hole-24" | 17.75Kg | C: 0.42-0.50 | |
132-136RE | 6 hole-36" | 26.63Kg | Mn: 0.50-0.80 | |
UIC864 | UIC60 | 4 hole-630/Φ26 | 18.07Kg | Si: 0.17-0.37 |
UIC60 | 4 hole-600/Φ28 | 17.47Kg | Cr: ≤0.25 | |
UIC60 | 4 hole-630/Φ25 | 18.1Kg | P: ≤0.035 | |
UIC54 | 4 hole | 14.34Kg | S: ≤0.035 | |
UIC54 | 6 hole-800 | 19.94Kg | ||
BS 47-1 | BS75R | 4 hole | 6.56Kg | |
BS60A | 4 hole | 5.61Kg | ||
BS80A | 4 hole | 6.5Kg | ||
BS90A | 685.8/Φ26 | 13.23Kg | 50# chemical | |
BS90A | 792.9/Φ26.2 | 15.34Kg | composition(%): | |
BS100A | 4 hole | C: 0.62-0.70 | ||
90/91LB | 4 hole | 18.08Kg | Mn: 0.50-0.80 | |
90/91LB | 6 hole | 19.9Kg | Si: 0.17-0.37 | |
AS | 50kg | 4 hole | 14.3Kg | Cr: ≤0.25 |
50kg | 6 hole | 19.5Kg | P: ≤0.035 | |
S49 | 4 hole | 9.71Kg | S: ≤0.035 |
Standard of fish plate:
Standard | Type | Length/Diameter | Weight /Material | |
---|---|---|---|---|
AREMA 2007 | 115RE | 4 hole-24" | 17.04Kg | 45# chemical |
115RE | 6 hole-36" | 25.56Kg | composition(%): | |
132-136RE | 4 hole-24" | 17.75Kg | C: 0.42-0.50 | |
132-136RE | 6 hole-36" | 26.63Kg | Mn: 0.50-0.80 | |
UIC864 | UIC60 | 4 hole-630/Φ26 | 18.07Kg | Si: 0.17-0.37 |
UIC60 | 4 hole-600/Φ28 | 17.47Kg | Cr: ≤0.25 | |
UIC60 | 4 hole-630/Φ25 | 18.1Kg | P: ≤0.035 | |
UIC54 | 4 hole | 14.34Kg | S: ≤0.035 | |
UIC54 | 6 hole-800 | 19.94Kg | ||
BS 47-1 | BS75R | 4 hole | 6.56Kg | |
BS60A | 4 hole | 5.61Kg | ||
BS80A | 4 hole | 6.5Kg | ||
BS90A | 685.8/Φ26 | 13.23Kg | 50# chemical | |
BS90A | 792.9/Φ26.2 | 15.34Kg | composition(%): | |
BS100A | 4 hole | C: 0.62-0.70 | ||
90/91LB | 4 hole | 18.08Kg | Mn: 0.50-0.80 | |
90/91LB | 6 hole | 19.9Kg | Si: 0.17-0.37 | |
AS | 50kg | 4 hole | 14.3Kg | Cr: ≤0.25 |
50kg | 6 hole | 19.5Kg | P: ≤0.035 | |
S49 | 4 hole | 9.71Kg | S: ≤0.035 |
