30 lb new asce rails, 27'0" drilled 2" x 4", using 5/8" x 2-1/2" or 5/8" x 3" bolts, 270 lbs each.
Specifications:
Rail Type: 30 as
Section number: 3040
Nominal Weight: 25 lbs/yd
Standard Length: 30' (20' and 40' also available)
Standard Drilling: 2" x 4" with 3/4" diameter hole
Splice bar length: 16-1/8"
Splice bar weight: 6 lbs/pr with hardware: 8 lbs/pr
Track Bolts: 5/8" x 2-1/2"

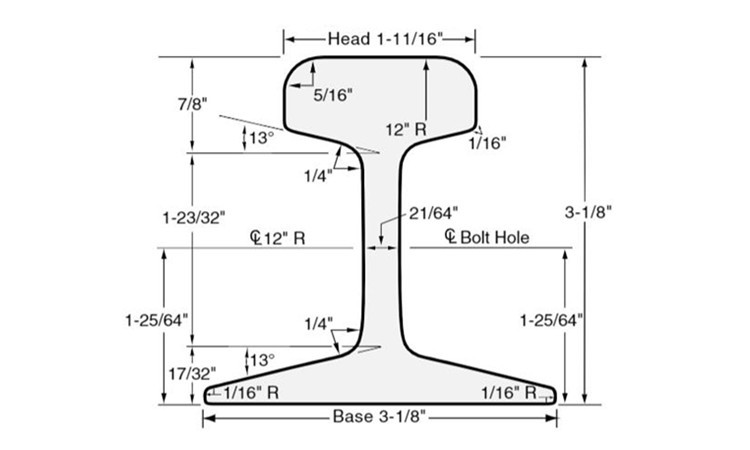

30 LB ASCE Rail CAD:
30 LB ASCE Rail Manufacturer
Kingrail Parts can supply all kinds of rails, including light rail, heavy rail, crane rail, and other rails of different standards and specifications, such as ASCE standard 30 LB rails.
