30 lb new asce rails, 27'0" drilled 2" x 4", using 5/8" x 2-1/2" or 5/8" x 3" bolts, 270 lbs each
Specifications:
Rail Type: 30 as
Section number: 3040
Nominal Weight: 25 lbs/yd
Standard Length: 30' (20' and 40' also available)
Standard Drilling: 2" x 4" with 3/4" diameter hole
Splice bar length: 16-1/8"
Splice bar weight: 6 lbs/pr with hardware: 8 lbs/pr
Track Bolts: 5/8" x 2-1/2"

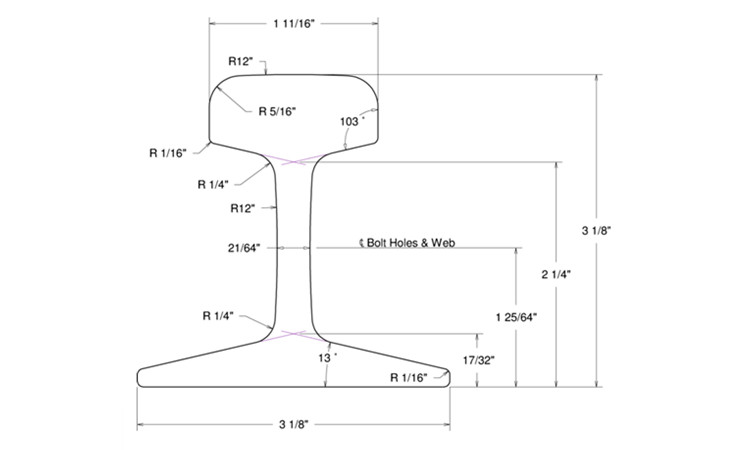

Drawing:
