49E1/S49 rails are mainly used as transportation rails and can also be used for underground mining.
Kingrail Parts can provide S49 rails at the best price. For details, please contact us.
Specification:
Size: 49E1/ S49 rail
Level: 12 to 30 meters
Unit weight: 49.39 kg/m
Material: R200, R260, R260MN, R350HT
Standard: EN 13674 - 4
Type |
Dimension (mm) |
Weight (kg/m) |
Material |
Length (m) |
|||
Head |
Height |
Bottom |
Web |
||||
49E1 (S49) |
67 |
149 |
125 |
14 |
49.39 |
R260/R350HT |
12-25 |

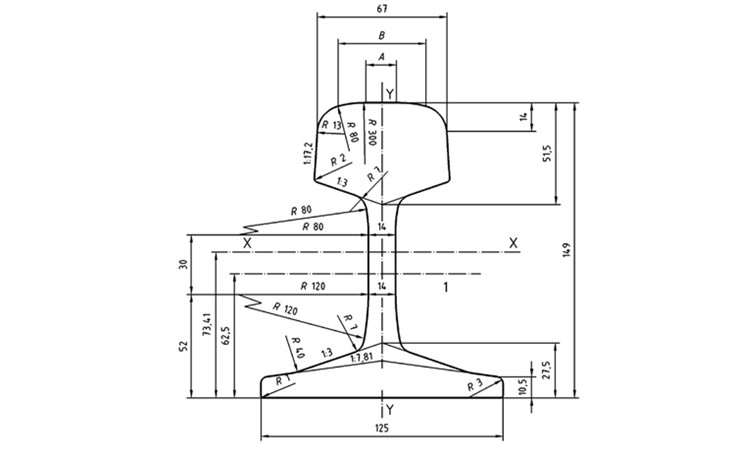

Drawing:
