S18 rail is manufactured according to European standards with a mass of 18.20 kg per meter.
Kingrail Parts can provide high -quality and low -unit S18 rails.
Dimensions:
| Type of light rail | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | F | K | S | cm² | kg/m | |||
| European standard EN 13674-1 | ||||||||
| S18 | DIN 5901 | 93 | 82 | 43 | 10 | 23,10 | 18,20 | |

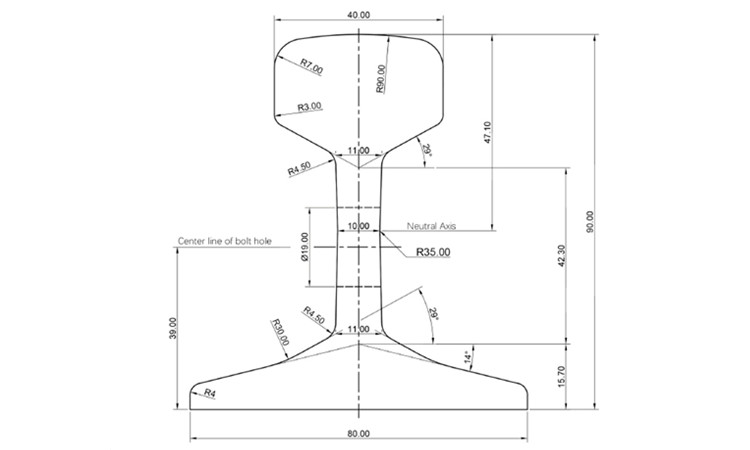

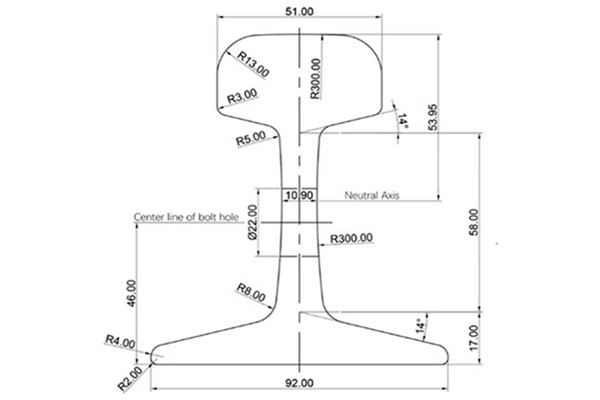

Drawing:
