Kingrail Parts a professional railway rail supplier from China. We can provide high quality and good price 90R rails. The rail length is 12-25 meters.
Specification
Type: heavy rail
Material: 900A/1100
Weight: 44.51kg/m
Level: 12-25M
| Rail Height | Flange Width | Head Width at Top | Head Width at Base | Head Height | Web Thickness | Flange Thickness at Edge | Flange Thickness at Center | Weight (per meter) | cm | cm4 | cm4 | |
| Rail Type | RH | FW | HT | HB | HH | WT | FE | FM | kg | Y | Ixx | Iyy |
| BS 90R rail | 142.9 | 136.5 | 66.7 | 66.7 | 32.5 | 13.9 | 9.1 | 20.6 | 44.51 | 74.8 | 1584 |
|

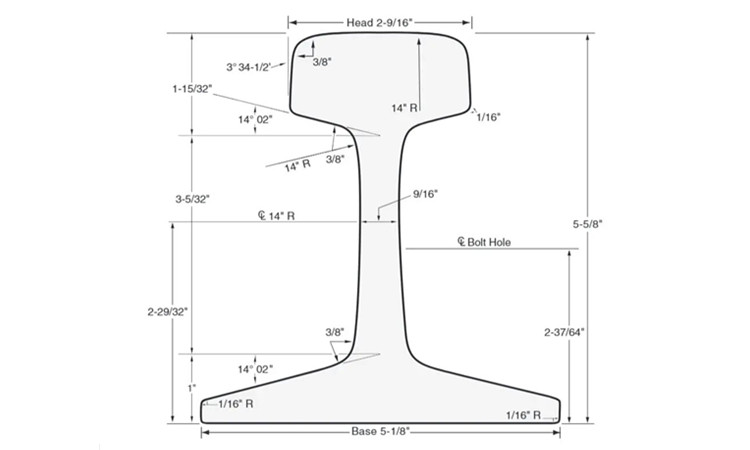

Drawings
Contact us
Please contact us for more information and quotations.
