Kingrail Parts supply ASCE 40 steel rails at high quality and competitive price. The ASCE40 rail is one of the light rail.
Specification
Type: Light Rail
Material: 700
Weight: 19.84 kg/m
Length: 6-12m
Standard: ASTM A1/AREMA
| Standard | ASTM A1/AREMA | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 |

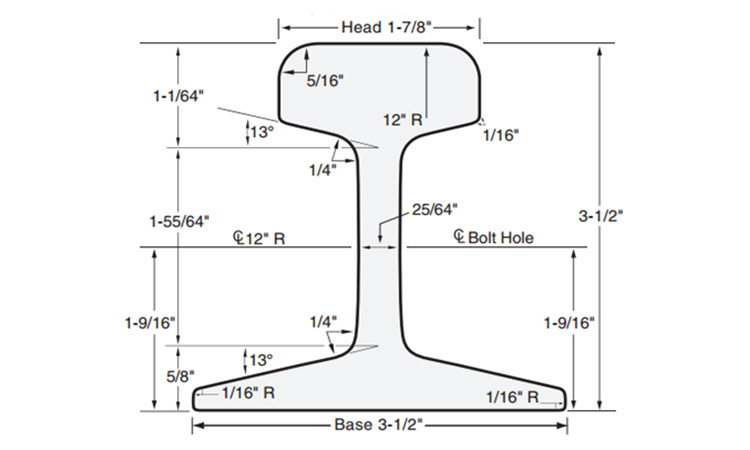

Drawing
