115RE rails have standard profiles that comply with AREMA (American Railroad Engineering and Road Maintenance Association) standards. Its nominal weight is 56.9kg/m, which equates to 115 pounds per yard. So, it is also called 115 pound rail.
115RE rails have better performance than many other rails in terms of hardness, strength, wear resistance, corrosion resistance, etc. It can improve the service life of iron ore, coal mines and other heavy-duty railway lines.
Specification:
Weight: 56.9 kg/m
Rail Height: 168.3mm
Material: 55Q U71MN SS 900A
Length: 12m~25m
Grade: R260/R350HT
Standard: ASTM, AREMA 2001
Dimensions:
| Size | Head (mm) | Height (mm) | Base (mm) | Web (mm) | Nominal weight (kg/m) | Material | Length （m） |
| 115RE(115lb) | 69.06 | 168.28 | 139.7 | 15.88 | 56.9 | 900A/1100 | 12-25 |

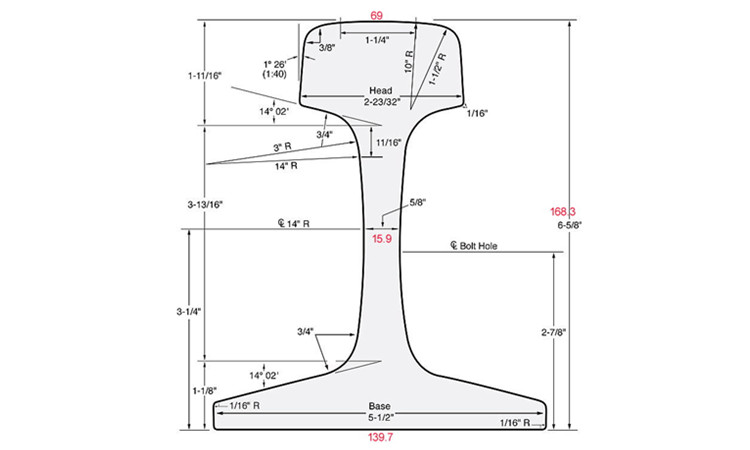

Drawing:
