60kg rails have good comprehensive mechanical properties and are suitable for railway sections with complex stresses. They are widely used along railway lines in various countries. 60kg steel rails can be used to lay railway trunk lines, seamless railway lines, mines, shaft tracks, crane rail tracks, ports, construction site light vehicle transport tracks, etc.
Specification:
Material: U71Mn/U75VX
Weight: 60.80Kg/m
Length: 12-25m
Standard: TB2344-2012
Applications: Crane machinery, power plants, railway tracks
Safe load: 20-50 tons
Size:
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| 60kg | 60.64 | 50Mn/U7Mn | 12.5-25 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 73 | 150 | 176 | 16.5 |

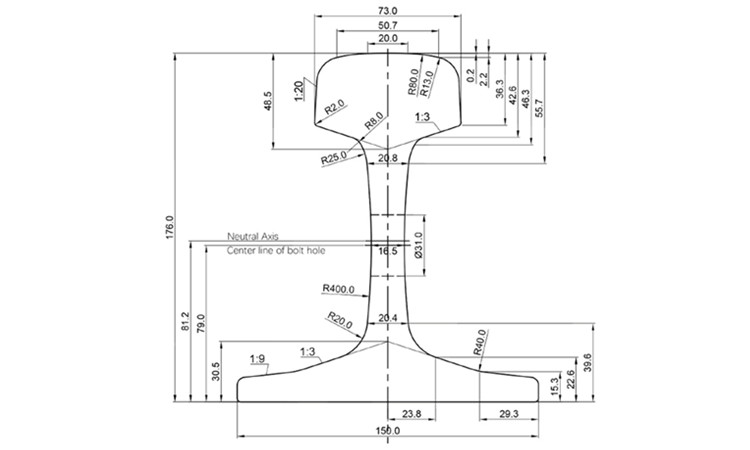

Drawing:
