The 24kg rail is one of the light rails. 24kg rails can be used in the mining industry and railway tracks.
Kingail Parts can provide high quality and low unit price 24kg steel rails. Materials include Q235 and 55Q. The lengths are 6m, 8m and 10m.
Specification:
Type: Light Rail
Material: Q235/55Q
Weight: 24.46Kg/meter
Standard: GB11264-2012
Type |
Dimension (mm) |
Weight (kg/m) |
Material |
Length (m) |
|||
Head |
Height |
Bottom |
Web |
||||
24kg |
51 |
107 |
92 |
10.9 |
24.46 |
Q235B/55Q |
6-12 |

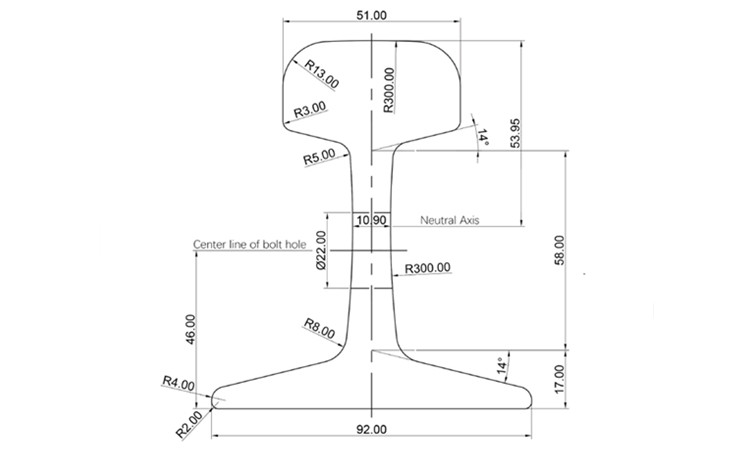

Drawing:
