90RA rail is also called TR45 AREMA rail and is widely used in the Americas. The materials are SS and HH. Length 12-25m (39ft to 80ft).
Kingrail Parts can be produced to order and the minimum order quantity should be 500 tons.
Specification:
Dimensions: 90 RA rail, 90 LBS rail, 90 ARA-A rail
Standard: AREA, ARA
Surface: Ordinary or as per customer requirements
Packaging: as required
Dimensions:
| Rail Type | Hight width (mm) | Base width (mm) | Head width (mm) | Web thickness (mm) | Weight Kg/m | Material |
| 90 ARA-A | 142.88 | 130.18 | 65.09 | 14.29 | 44.65 | 900A/1100 |

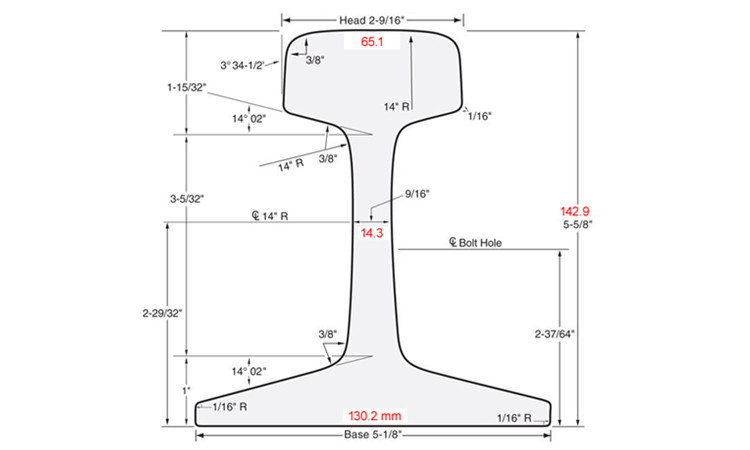

Drawing:
