12kg steel rails are used for laying temporary transportation lines and light locomotive lines in forest areas, mining areas, factories, and construction sites.
Kingrail Parts can provide you with Chinese standard heavy rail in various specifications, including 8kg rail, 9kg rail, 12kg rail, 15kg rail, 24kg rail, etc.
Specification:
| Size | Dimension(mm) |
Weight (kg/m) |
Material | Length(m) | ||||
| Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | |||||
| GB12KG | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | Q235B/55Q | 6-12 | |

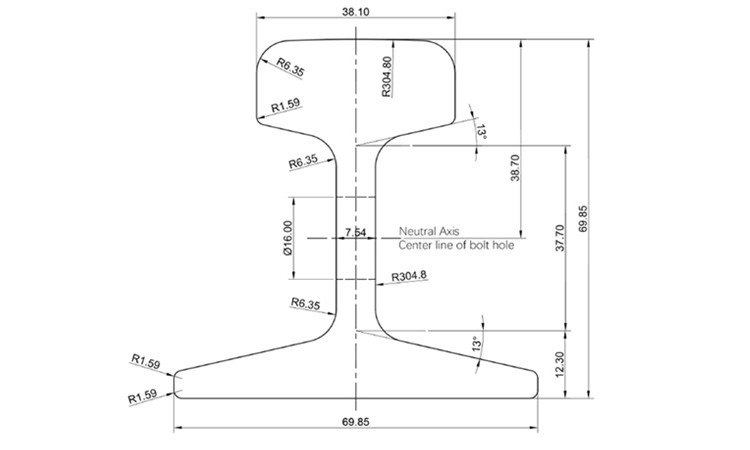

Drawing:
