S54 rails are manufactured in accordance with European standard EN 13674-1. The rail profile is 54E3 (S54), and weighs 54.57 kg per meter.
As a professional rail manufacturer in China, Kingrail Parts can also provide EN standard rails, including 60E1 rails, UIC60 rails, 54E1 rails, 54E3 rails, etc.
Specifications
Size: 54E3 DINS54 rail
Length: 5m~25m or other lengths as required by customers
Material: R200, R260, R260MN, R350HT
Standard: EN 13674-4
|
Product Name |
54E3 Rail |
||||||
|
Standard |
EN 13674-1-2003 |
||||||
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
54E3 RAIL |
67 |
154 |
125 |
16 |
54.57 |
R260/R350HT |
12-25 |

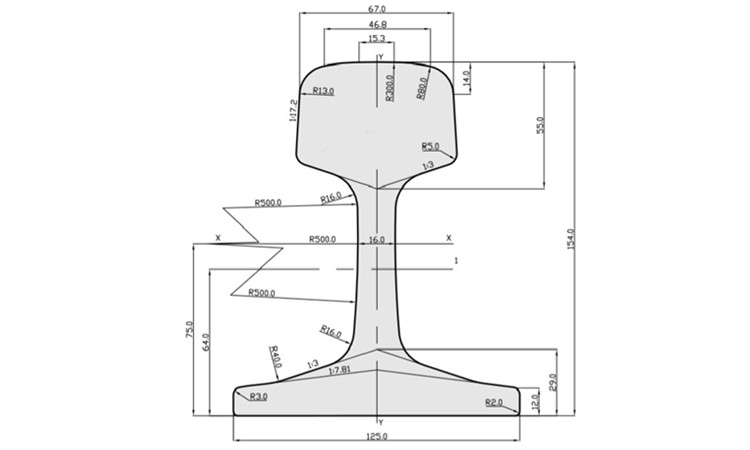

Drawings
