Kingrail Parts' A120 crane rails are manufactured to DIN standards (German Standards Institute) and are available in a length of 12 meters.
They are commonly used for trolley rails, crane cranes, mining cranes, truck tippers and a variety of other applications.
Specification:
Material: 700/900A/1100
Weight: 100kg/m
Length: 10-12m
Standard: DIN536-1-1991
|
Standard Length |
12.00 m |
|
Elongation (%) |
min 8 % |
|
Calculated Mass Carbon |
0.60 – 0.80 |
|
Calculated Tensile Strength (min) N/mm2 |
880 |
|
Calculate Yield Point (min) N/mm2 |
440 |
|
Moment of Inertia: lx |
1361.0 cm4 |
|
Moment of Inertia: ly |
2350.0 cm4 |
|
Section Modulus – Foot |
289.0 cm3 |
|
Section Modulus – Head |
235.1 cm3 |
|
Area |
127.4 cm2 |
|
Calculated Mass |
100.0 kg/m |

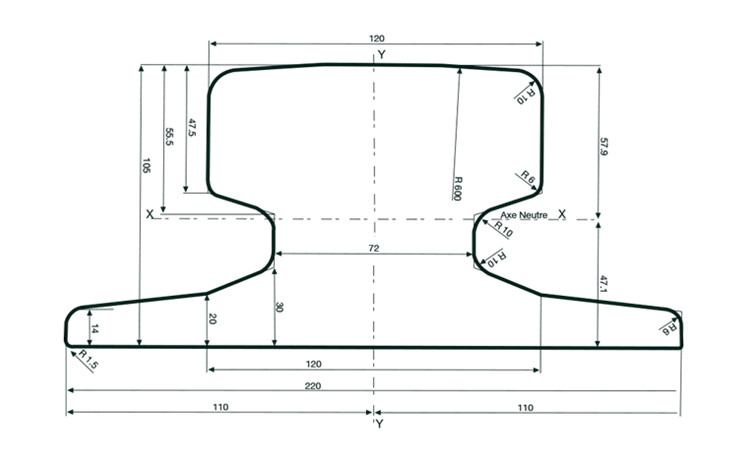

Drawing:
