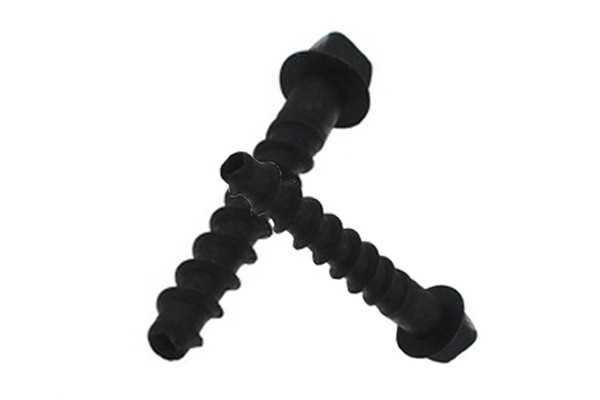

Rail Screw Spikes

Railroad tie lag screws, also known as sleeper screws, rail screws, or lag bolts, are medium or large metal screws used to fix the rail base plate or rail. This screw spike is always fixed in the holes drilled on the tie sleeper, sometimes fixed with the embedded plastic dowels, and is usually used for rails with wooden sleeper, especially in the United States and Canada.

Railroad tie lag screws production process:

1.       Raw material

2.       Pull line

3.       Rod cutting

4.       Head molding

5.       Cut

6.       Thread roller

7.       Heat treatment

8.       Surface treatment

9.       an examination

10.   Package

11.   Transportation

Kingrail Parts can produce railroad tie lag screws of various sizes to meet the installation needs of different sizes of railways. Our lag screws can reach UIC, AREMA, GB, BS, DIN and JIS or ISO and other standards.

SS25, SS35, SS36 sleeper screw

Size: 24 × L, L = 150mm to 270mm

Level: 5.6, 8.8

Standard: ISO898-1, UIIC864-1, NF F500-50

Surface treatment: ordinary oil, sandblasting oil, black oxide, galvanized, HDG, Daklo and zinc.

AS screw spike

Mechanical performance: UTS550-700N/mm2, an extension of 15%.

Standard: BS64 normal strength

Surface treatment: ordinary oil, sandblasting oil, black oxide, galvanized, HDG, Daklo and zinc.

24 × 185mm alloy steel screw spike

Size: 24 × 185mm

Material: alloy steel

Level: 8.8

Execution standard: GB/T3098.1

Surface treatment: ordinary oil, sandblasting oil, black oxide, galvanized, HDG, Daklo and zinc.

TR thread screw

Size: TR22 × L, TR23 × L, L = 115mm to 165mm, Step 5mm

Level: 4.6, 5.6, 8.8, 10.9

Standards: NF F500-15, UIIC864-1, ISO898-1

Surface treatment: ordinary oil, sandblasting oil, black oxide, galvanized, HDG, Darklo, zinc osmotic

Timber screw

Size: diameter 15/16 '', 1 '', L ordered by 16 × 115, 19 × 115. Diameter 3/4 '' × l, l = 12 ''

Material: Low -carbon steel Q235

Mechanical performance: minimum tensile strength 740000PSI

Surface treatment: black oil, soaked wax

Chex screw spikes

Size: 25 × 190mm 24 × 180mm

Level: 4.6, 5.6, 8.8

Standard: AS1085.18

Surface treatment: HDG

Other types

We can customize railway lag screws according to the customer's drawings and grades.
