Rail washers are used between fasteners and rail nuts such as spikes and nuts, bolts and nuts, etc. Kingrail Parts has 15 years of experience as a professional railway fastener manufacturer. We can produce all kinds of double coil spring washers, single coil spring washers, lock washers, flat washers and other non-standard custom washers.
We can provide washers with different finishes such as bright, galvanized and black. In addition, different standards such as ISO, DIN, ANSI, BS and special standards can be produced according to the drawings.
Types of Rail Washers:
| Type | Dimension | Weight (Kg/Mpcs) |
|---|---|---|
| Spring washer Fe6(UIC864-3) | ￠ 25 | 90 |
| Spring washer AREA67 | 7/8 | 90.55 |
| Spring washer AREA67 | 1 | 152.33 |
| Spring washer AREA67 | 1-1/8 | 187.65 |
| Plain pattern washer | 7/8 | 70.46 |
| Plain pattern washer | 1 | 78.03 |
| Plain pattern washer | 1-1/8 | 85.32 |
| Flat washer ULS6 | 47/23/4 | 41 |
| Flat washer ULS6 | 50/25/4 | 42 |
Flat Rail Washer:
Flat rail washer parameters
Type: Uls6, Uls7
lock washer
Type: WL20, WL24, Wl22
Raw materials: 65Mn, 60Si2Mn, 70#
Surface: Black, Zinc, HDG…

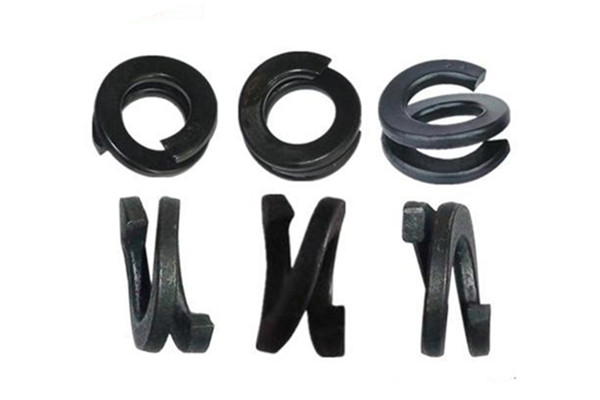

Spring Rail Washer:
Spring guide washer parameters
Type: Fe6
Raw material: 60Si2Mn
Spring steel bar Fe6
Hardness: 42-50
