Kingrail Parts can provide a variety of railway fish bolts for connecting for rail joints.
Kingrail Parts produces high -quality fishtail bolts. Our fish bolts are manufactured based on various international standards (such as BS, ASTM, DIN, etc.).
Specification:
Material: Q235, 35#, 45#, 40CR, C45
Level: 4.8, 8.8, 10.9
Size: 22 × 135, 24 × 135, 24 × 145, other sizes can be customized.
Surface: Plain (oil), black oxide, zinc, HDG
Types: BS standard, Indonesian R54 guide rail, AS1085.4-1999, Russian standards, AREMA standards, etc.

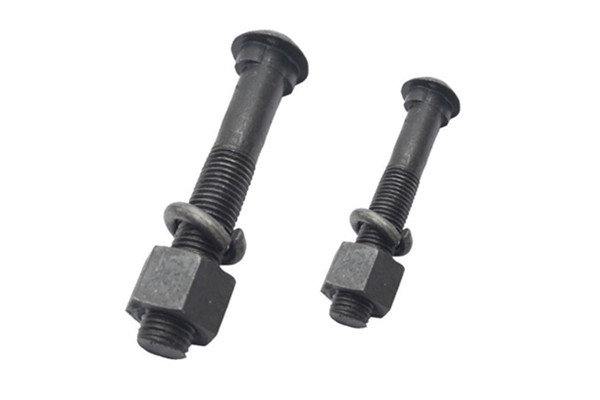

Our most popular are round head oval neck and diamond neck fishbolts
Button Head Oval Neck Fish Bolt
|
Diameter
|
Length | Weight (Kg) |
| 1/2" | 1-3/4" | 0.097 |
| 1/2" | 2" | 0.10 |
| 1/2" | 2-1/4 | 0.112 |
| 5/8 | 2-1/2 | 0.183 |
| 3/4 | 3 | 0.328 |
| 3/4 | 3-1/2 | 0.339 |
| 3/4 | 4 | 0.356 |
| 7/8 | 4-1/2 | 0.559 |
| 7/8 | 5 | 0.593 |
| 1 | 5 | 0.8 |
| 1 | 5-1/2 | 0.839 |
| 1 | 6 | 0.879 |
| 1-1/16 | 6 | 0.995 |
| 1-1/8 | 6-1/2 | 1.186 |
Diamond Neck Fish Bolts
| Diameter | Length | Weight (Kg) |
| 7/8 | 4-1/2 | 0.563 |
| 7/8 | 5-1/2 | 0.651 |
| 1 | 5-1/4 | 0.889 |
| 1 | 5-3/4 | 0.895 |
| Note: All fish bolt dimensions given in inches. | ||
Please contact us for more information and quotations.
