54E1 (UIC54) rail is manufactured according to European standard EN 13674-1. It is used for railway construction. This is a T-section rail (flat-bottomed rail) with a mass of 54,77kg per meter.
54E1 UIC54 rail is mainly used as a railway track for heavy vehicles, and can also be used in underground mining and crane industries.
UIC plays an important role in the standardization of parts for railway construction. UIC54 (54E1) is the best example of rails.
UIC54 Rail Specifications:
Material: R900A/R1100
Hardness: R260, R320
Type: Heavy Rail
Model: UIC54 UIC54E1
Bolt hole diameter: 30mm
Inspection standard: EN13674
Standard: EN 13674 – 4
UIC 54 Rail Size:
| Type of Rail | Standard | Dimensions (mm) | Section S | Mass m | ||||
| H | B | C | D | E | cm² | kg/m | ||
| European standard EN 13674-1 | ||||||||
| 54E1 (UIC54) | EN 13674 - 1 | 159,00 | 140,00 | 70,00 | 49,40 | 16,00 | 68,77 | 54,77 |
Mechanical Properties of UIC 54 Rail:
| Standard | Steel Grades | Mechanical Properties | ||
| Rm MPa | min A5 % | HB | ||
| EN 13674 - 1 (2006) | ||||
| R200 |
min 680 |
14 | 200 - 240 | |
| R260 |
min 880 |
10 | 260 - 300 | |
| R260 MN |
min 880 |
10 | 260 - 300 | |
| R350 HT |
min 1175 |
9 | 350 - 390 | |

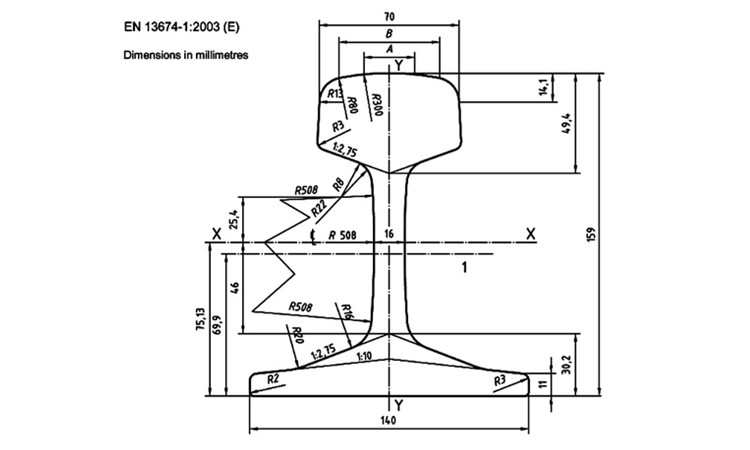

Drawings:
UIC54 Rail Manufacturer:
As a leading rail manufacturer in China, Kingrail Parts can use the latest technology and high-quality raw materials to produce a variety of rail products that meet the international UIC standards.
If you need EN standard 54E1 UIC54 rail, please contact us.
