As a Japanese standard railway rail, JIS 60KG rail means its weight per meter is approximately 60 kg (60.6 kg). It belongs to heavy rail, not only used for railway construction, but also used for cranes and port crane rails.
60kg Rail Specifications:
Weight: 60.80kg/m
Material: U71Mn/U75VX
Length: 5m~12m
Rail height: 176mm
Bottom width: 150mm
Head width: 73mm
Web thickness: 16.5mm
Matrials: 55Q, 50Mn, U71Mn
Standard: JIS E1103-91/JISE 1101-93
60kg Rail Suppliers:
Kingrail Parts is a supplier of JIS 60KG rails from China, sometimes we store JIS standard rails. Such as JIS 60kg steel rail, 50kg steel rail and other heavy-duty rails of different standards and specifications.

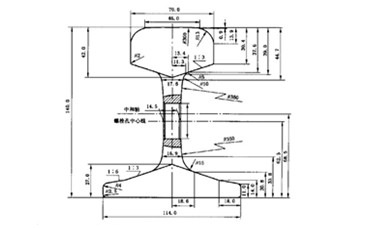

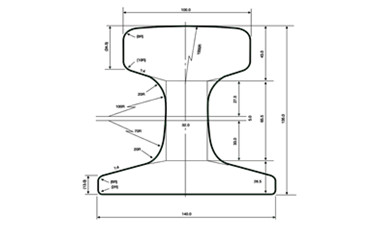

60kg Rail Drawings:
60kg Rail:
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 60Kg | 60.80 | U71Mn/U75VX | 12m-25m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 176 | 150 | 73 | 16.5 |
Other Heavy Rail:
| Heavy Steel Rail | Size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 38kg | 134 | 114 | 68 | 13 | 38.733 | |
| 43kg | 140 | 114 | 70 | 14.5 | 44.653 | |
| 50kg | 152 | 132 | 70 | 15.5 | 51.514 | |
| 60kg | 176 | 150 | 73 | 16.5 | 60.8 | |
| 75kg | 192 | 150 | 75 | 20 | 74.64 |
