The QU100 rail is a crane rail. QU100 crane rail is mainly used in the crane industry. The QU100 crane rail can also be used for large-scale projects, hoisting containers at the wharf, etc. It is specially used for gantry cranes.
Kingrail Parts can also supply other specifications of crane rails, such as QU70 crane rail, QU80 crane rail and QU120 crane rail.
QU100 Crane Rail Specifications:
Material: U71Mn
Weight: 88.96Kg/m
Length: 12m
Standard: YB/T5055-2014
Application: gantry crane, large-scale engineering, wharf, etc.
QU100 Crane Rail Suppliers:
As a famous QU100 rail supplier in China, Kingrail Parts keeps a large number of QU100 rails in stock all the year round.

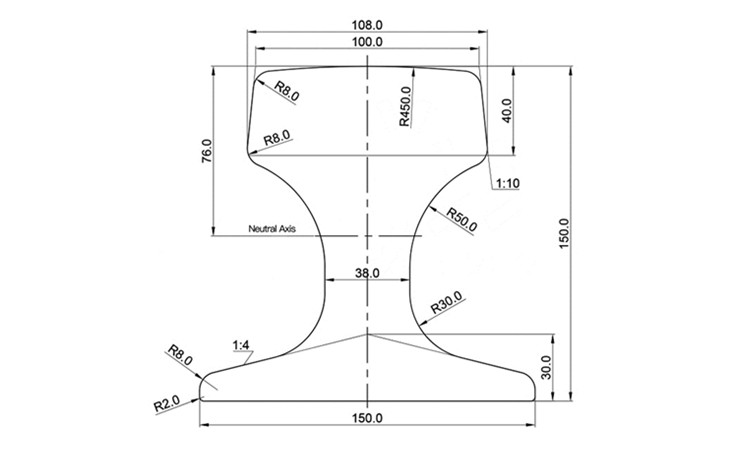

QU100 Rail Specifications:
| QU100 Rail Parameters | |||
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| QU100 | 88.96 | U71Mn | 12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 100 | 150 | 150 | 38 |
Other Crane Rail Specifications:
| Other Sizes of Crane Rail | |||||||
| Size | Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness(mm) | Weight(Kg/m) | Material | Length(m) |
| QU70 | 70 | 120 | 120 | 28 | 52.8 | U71Mn | 12 |
| QU80 | 80 | 130 | 130 | 32 | 63.69 | U71Mn | 12 |
| QU120 | 120 | 170 | 170 | 44 | 118.1 | U71Mn | 12 |
