54E1 (UIC54) rail model manufactured according to European standard EN 13674-1. It is used in railway construction. This is a T-section rail (flat bottom rail) with a mass of 54,77 kg per meter. For standard rail, 54E1/UIC54 track is used for medium and heavy traffic.
UIC plays an important role in the standardization of railway construction, UIC54 (54E1) is the best example of rail.
Specification:
Size: 54E1 UIC54 rail
Length: 5m~25m or other lengths according to customer requirements
Material: R200, R260, R260MN, R350HT
Model: 54E1 UIC54 Rail
Standard: EN 13674-4
Weight: 54.77kg/m
Uses: railway transportation, cranes, mine tracks, automated warehouses, etc.
Dimensions:
| Type of Rail | Standard | Dimensions (mm) | Section S | Mass m | ||||
| H | B | C | D | E | cm² | kg/m | ||
| European standard EN 13674-1 | ||||||||
| 54E1 (UIC54) | EN 13674 - 1 | 159,00 | 140,00 | 70,00 | 49,40 | 16,00 | 68,77 | 54,77 |
Mechanical Properties:
| Standard | Steel Grades | Mechanical Properties | ||
| Rm MPa | min A5 % | HB | ||
| EN 13674 - 1 (2006) | ||||
| R200 |
min 680 |
14 | 200 - 240 | |
| R260 |
min 880 |
10 | 260 - 300 | |
| R260 MN |
min 880 |
10 | 260 - 300 | |
| R350 HT |
min 1175 |
9 | 350 - 390 | |

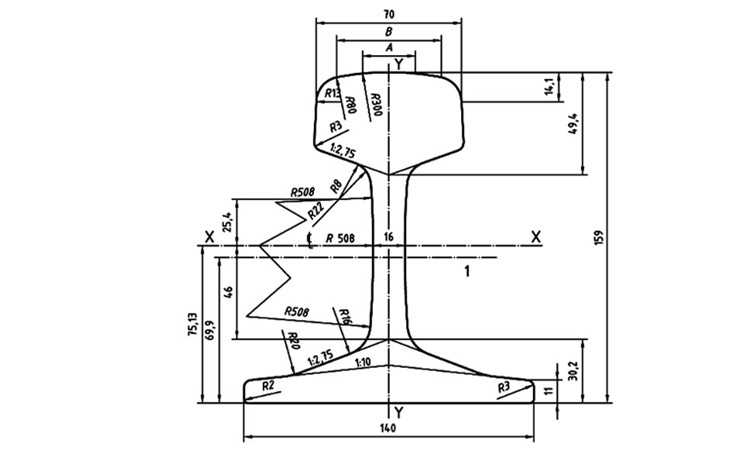

Drawing:
