The rail profile 54E1 (UIC54) is manufactured according to the European standard EN 13674-1, with a mass of 54.77 kg per meter.
Kingrail Parts can provide various rails, including different standards and specifications such as light rails, heavy rails, crane rails, such as EN standard 54E1 UIC54 rails.
Dimensions:
| Type of Rail | Standard | Dimensions (mm) | Section S | Mass m | ||||
| H | B | C | D | E | cm² | kg/m | ||
| European standard EN 13674-1 | ||||||||
| 54E1 (UIC54) | EN 13674 - 1 | 159,00 | 140,00 | 70,00 | 49,40 | 16,00 | 68,77 | 54,77 |
Mechanical Properties:
| Standard | Steel Grades | Mechanical Properties | ||
| Rm MPa | min A5 % | HB | ||
| EN 13674 - 1 (2006) | ||||
| R200 |
min 680 |
14 | 200 - 240 | |
| R260 |
min 880 |
10 | 260 - 300 | |
| R260 MN |
min 880 |
10 | 260 - 300 | |
| R350 HT |
min 1175 |
9 | 350 - 390 | |

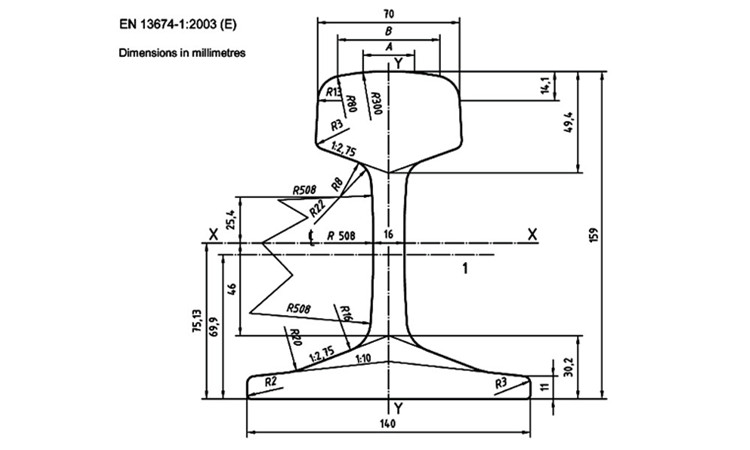

Drawing:
