ASCE85 rail (85LB rail / 85 pound rail) is mainly used in light transportation or light rails such as temporary transportation rails in forest areas, mines, and construction areas.
The ASCE 85 LB rail of Kingrail Parts is manufactured based on the US standard ASCE, with a mass of 42,15 kg per meter.
Specification
|
Size |
Rail height(mm) A |
Bottom Width(mm) B |
Head Width(mm) C |
Web Thickness(mm) t |
Weight(kg/m) |
|
ASCE85 |
131.76 |
131.76 |
65.09 |
14.29 |
42.3 |

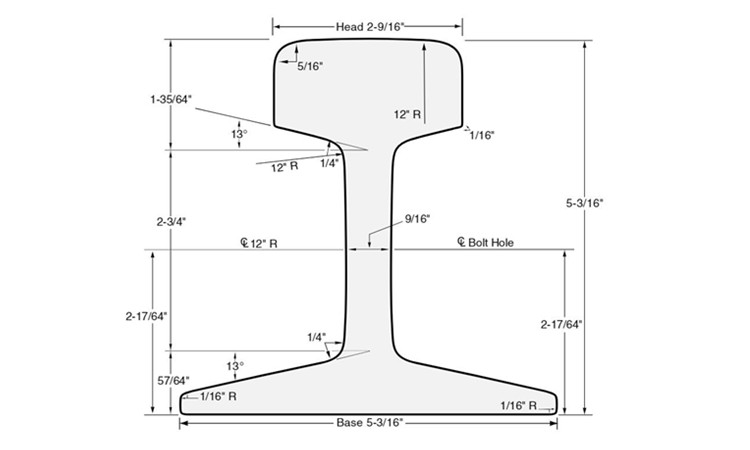

Drawing
