The JIS CR73 rails are mostly used for the transportation of mine roadways and factory workshops, crane hoisting equipment, and the laying of special railway lines.
We can supply the CR73 rail at high quality and competitive price. The CR73 rail is one of the heavy rails. The CR73 rail is one of the crane rails.
Specification:
Type: Crane rails
Material: U71MN
Weight: 73.3kg/m
Level: 10-12M
Standard: JIS E1103-93/JIS E1101-93
Dimensions:
| Profile |
|
Dimensions mm | Section S | Mass m | |||
|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | ||
| CR73 |
Specification |
135 | 140 | 100 | 32 | 93,40 | 73,30 |

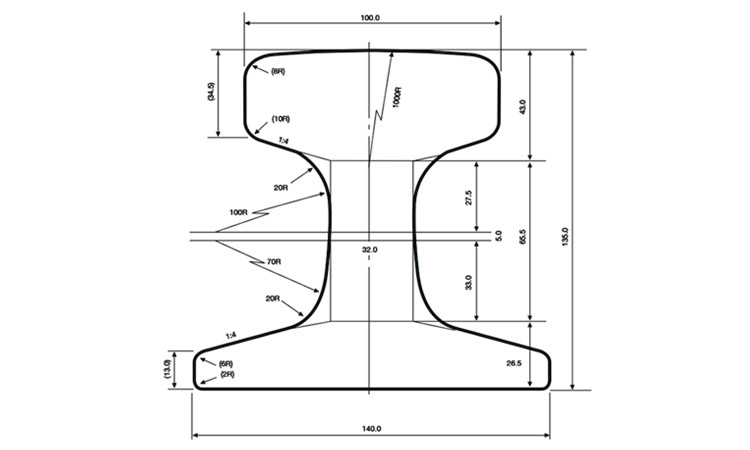

Drawing:
