The 50 kg rail of Kingrail Parts is a plain carbon rail that is suitable for most networks and light freight and mining rail applications. The 50 kg rail is also suitable for crane rail, conveyor trippers, slipways, and workshop pads.
Specification:
Material: 50mn/U71MN
Weight: 51.514kg/m
Length: 12m/12.5M
Execution standard: GB2585-2007
| type | weight (kg/m) | material | length (m) |
| 50kg | 51.514 | 50Mn/U71Mn | 12m/12.5m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 152 | 132 | 70 | 15.5 |

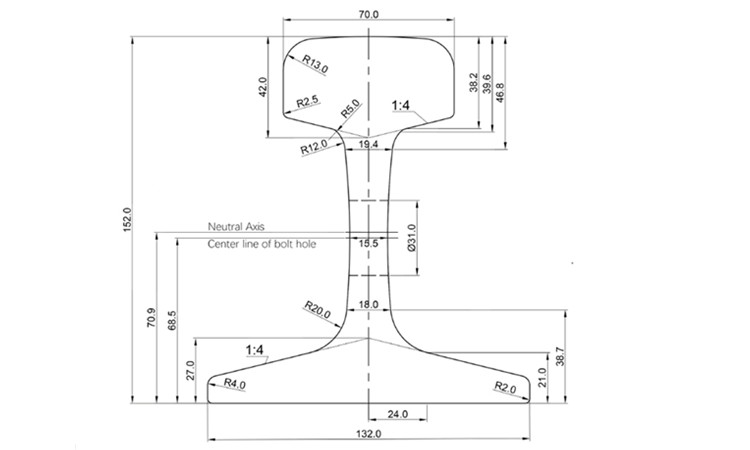

Drawing:
