171 lb crane rail is used for crane trolley, lifting trolley. Hardness is R260HB. Length is 12 meters.
Kingrail Parts can provide a variety of steel rails, light rails, heavy rails, crane rails (171 lb rail), as well as other rail specifications and standards.
Specification:
RAIL SECTION | MASS G (KG/M | HEIGHT H (MM) | FOOT B (MM) | HEAD K (MM) | WEB W (MM) | NEUTRAL AXIS E (MM) | ADMITTED WHEELLOAD (KN) | FACTORY STOCK (M) | STANDARD TENSIL STRENGTH (N/MM2) |
---|---|---|---|---|---|---|---|---|---|
171-lb CR | 84,80 | 152,40 | 152,40 | 101,60 | 31,75 | 108,70 | 460 | 12/15 | 690/880/1080 |

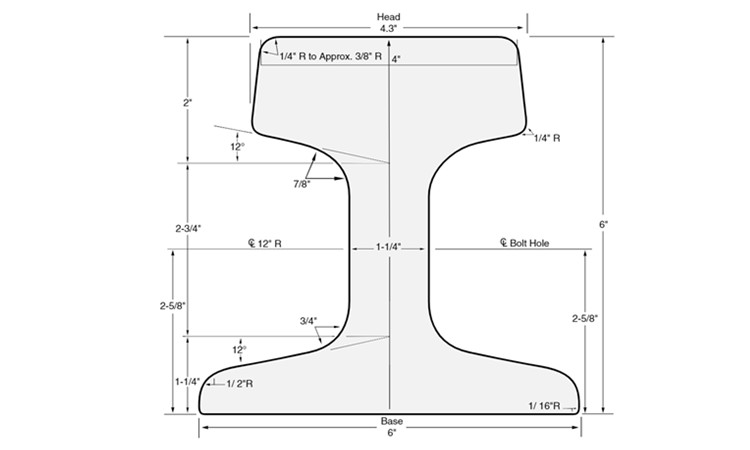

Drawing:
