The crane rail A55 from Kingrail Parts is manufactured according to the European standard DIN 536 P1:1991 and has a mass of 31,80 kg/m.
Our A55 rails are commonly used for trolley rails, crane rails, mining rails and a variety of other applications.
Specification
Rail Type | Weight(Kg/m) | Material | Length(m) |
A55 | 31.8 | 700/900A/1100 | 10-12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
55 | 150 | 65 | 31 |

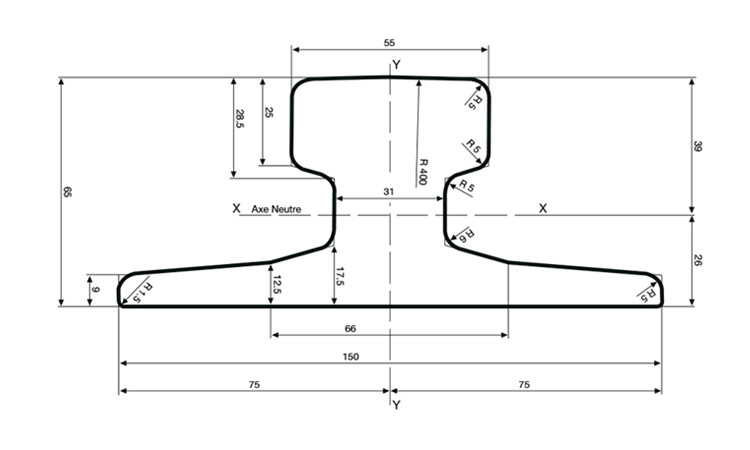

Drawing
